Retrofitting ultrasonic backup assist - AZ54.65-P-0001A

MODEL 210.0 /6 up to 30.6.99 except CODE (550) Trailer coupling except CODE (809) Model year 1999

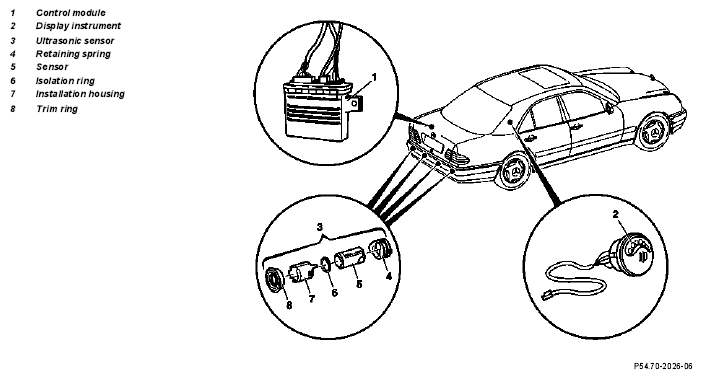

Fig 1: Identifying Retrofitting Ultrasonic Backup Assist - Model 210.0 /6 Up To 30.6.99

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Disconnect ground cable from battery
			AR54.10-P-0003A
2	Remove rear bumper
			AR88.20-P-2200F
3	Remove impact member from bumper
4	Remove CD player with changer
			AR82.64-P-7507EA
5	Remove side trim in left of trunk
			AR68.30-P-4780B
6	Remove trim on C-pillar
		Right C-pillar without code 290 or 293 up to 30.06.99	AR68.30-P-4490F
	Installing
7	Paint sensors and trim rings	Use trim rings with part no. 0 263 009 067	AZ54.65-P-0001-01A
8	Make holes in bumper		AZ54.65-P-0001-02A
9	Install and connect sensors		AZ54.65-P-0001-03A
10	Insert impact member in bumper
11	Install rear bumper	Route connection cable of sensor wiring harness through the selected or prepared duct into the rear area of the trunk. Seal duct with a rubber grommet.
			AR88.20-P-2200F
12	Install control module		AZ54.65-P-0001-04A
13	Install display instrument	Without code 290 or 293 up to 30.06.99	AZ54.65-P-0001-05A
		With code 290 or 293 up to 30.06.99 Without code 290 or 293 as of 01.07.99	AZ54.65-P-0001-05B
14	Route and connect wiring harness		AZ54.65-P-0001-06A
15	Install side trim in left of trunk
16	Install CD player with changer
			AR82.64-P-7507EA
17	Install trim on C-pillar
		Without code 290 or 293 up to 30.06.99	AR68.30-P-4490F
18	Connect battery ground cable
			AR54.10-P-0003A
19	Test ultrasonic backup assist		AZ54.65-P-0001-07A
20	Issue manufacturer's safety/operating instructions when handing over the vehicle to the customer
