Remove/install lower wishbone - AR33.20-P-0510IW

Model 220.083 /084 /087 /183 /184 /187

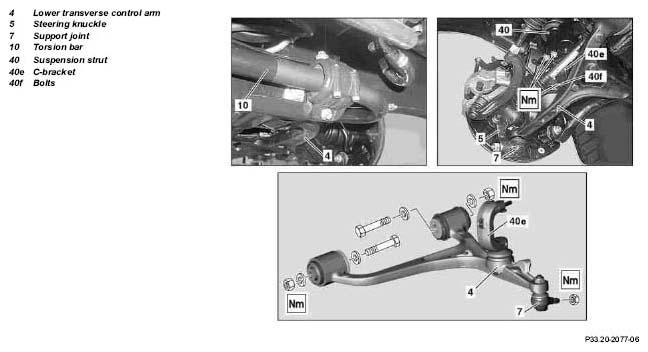

Fig 1: Identifying Lower Wishbone Remove/Install Components

MODIFICATION NOTES

15.3.04

The vehicle must have a chassis alignment check after the lower transverse control arm is installed

Step 11

	Remove/Install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove front wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
2	Detach lower engine compartment paneling		AR61.20-P-1105M
3	Remove torsion bar (10).	The torsion bar (10) must be removed due to the accessibility of the nuts of the lower transverse control arm (4) on the front axle carrier.	AR32.20-P-0300IW
4	Detach suspension strut (40) at top of C-bracket (40e)		*BA32.25-P-1010-04B
5	Detach brake line bracket on C-bracket (40e)
6.1	Detach C-bracket (40e) on lower transverse control arm (4)	If necessary Check ball joint boot in lower transverse control arm (4) for damage and replace lower transverse control arm if necessary. Installation:  The bolts (40f), after being turned in, must be flush with the C-bracket (40e) or be slightly recessed into it.
			*BA32.25-P-1011-04B
7	Press supporting joint (7) out of steering knuckle (5)		AR33.20-P-0440-01IW
		Thrust piece	Figure
		Puller	Figure
			*BA33.20-P-1017-01A
8.1	Press supporting joint (7) out of lower transverse control arm (4)	If necessary	AR33.20-P-0440-02IW
		Thrust piece	Figure
		Puller	Figure
			*BA33.20-P-1016-01A
9	Detach lower wishbone (4) from front axle carrier	When repair kit is installed:  The hexagon bolt must not be turned. When loosening the nut, the hexagon screw must be counterheld, as the fixing lugs for caster adjustment in the rubber mount are otherwise sheared off. Installation:  Note installation position if repair bolts have already been installed. Install repair bolts and washers in the same position again. Installation:  Only tighten nuts when the vehicle is in the curb condition.
			*BA33.20-P-1010-01A
10	Install in the reverse order
11	Perform chassis alignment		AR40.20-P-0200I

STRUTS

Number	Designation		Models 220.083/ 084/087/ 183/184/ 187
BA32.25-P-1010-04B	Bolt of suspension strut bracket to C-bracket	Nm	60
BA32.25-P-1011-04B	C-bracket to lower transverse control arm	Nm	20

WHEEL LOCATION, HUB

Number	Designation			Model 211.08/09/ 28/29
BA33.20-P-1010-01A	Self-locking nut, lower wishbone to front axle carrier		Nm	110
BA33.20-P-1016-01A	Self-locking nut, supporting joint to lower transverse control arm	1st stage	Nm	70
		2nd stage	∠°	50
BA33.20-P-1017-01A	Self-locking nut, supporting joint to steering knuckle	1st stage	Nm	70
		2nd stage	∠°	50

Fig 2: Identifying Thrust Piece (140 589 00 63 00)

Fig 3: Identifying Puller (202 589 02 33 00)

Fig 4: Identifying Puller (124 589 02 33 00)
