Retrofit AUX jack - AN82.60-P-0008P

MODEL 203.0## /2## /7## 1# as of 24.4.04 except CODE (990) AMG vehicles with CODE (523) MB Audio 20 radio with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS (with navigation) with CODE (529) HIGH Class Japan with CODE (530) COMAND APS USA (with navigation system) vehicles as of model refinement, AUX jack in glove compartment

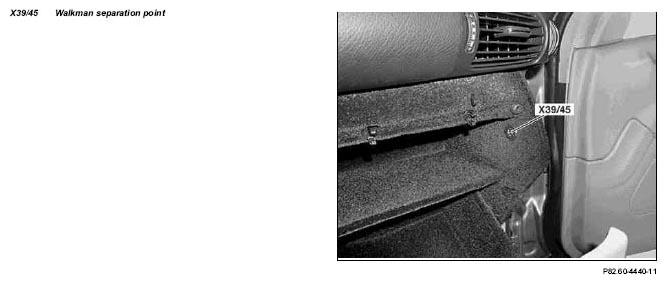

Fig 1: Identifying Walkman Separation Point

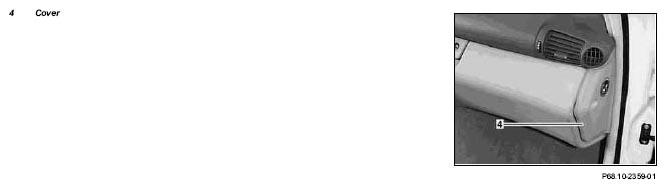

Fig 2: Identifying Instrument Cluster Side Panel Cover

	Remove
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
1	Disconnect battery ground line
	Disconnect/connect battery ground cable		AR54.10-P-0003P
2	Remove right front door sill molding
	Removing and installing front floor covering (right)		AR68.20-P-2070P
3	Remove cover on right A-pillar
	Removing and installing front floor covering (right)		AR68.20-P-2070P
4	Unclip the cover (4) at the side of the glove compartment
5	Open right front cable duct
	Install
6.1	Retrofit the Walkman separation point (X39/45)	Models 203.007/008/016/040/042/043/ 046/061/064/081/084/207/208/216/242/ 243/246/261/264/281/284/707/708/ 740/742/743/746/764	AN82.61-P-0001-01P
7	Close right front cable duct
8	Clip on the cover (4) at the side of the glove compartment
9	Install cover on right A-pillar
	Removing and installing front floor covering (right)		AR68.20-P-2070P
10	Install right front door sill molding
	Removing and installing front floor covering (right)		AR68.20-P-2070P
11	Connect ground cable to battery
	Disconnect/connect battery ground cable		AR54.10-P-0003P
12	Perform function check
