Retrofit wiring harness - AN82.61-P-0001-01P

AUX socket in glove compartment.

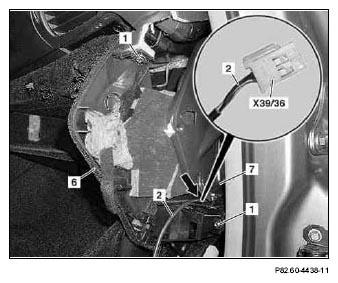

Fig 1: Identifying Cassette Player Connector And Walkman Separation Point

1. Remove the screws (1) on the right side of the instrument panel.
2. Move the glove compartment (6) slightly forward and feed the white, 4-pin coupling for the cassette player connector (X39/36) from the AUX socket wiring harness (2) in between the glove compartment (6) and the instrument panel carrier (7) (see arrow).
3. Fasten the glove compartment (6) back in place with the screws (1).

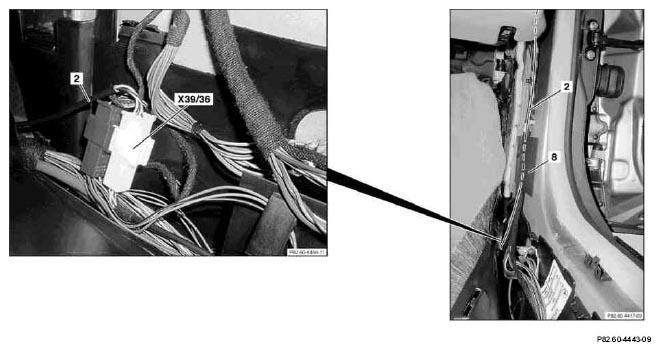

   Fig 2: Identifying Cassette Player Connector


4. Remove the soundproofing material at the perforation (3) and remove the perforated section (3) at the glove compartment (6) with a small flat tip screwdriver.

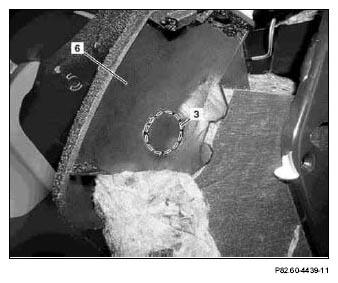

   Fig 3: Identifying Glove Compartment And Perforated Section


5. Install the Walkman separation point (X39/45) from the AUX socket wiring harness (2) on the side of the glove compartment (6).
6. In the area of the carrier (7), wrap felt tape (5) on the AUX socket wiring harness (2).

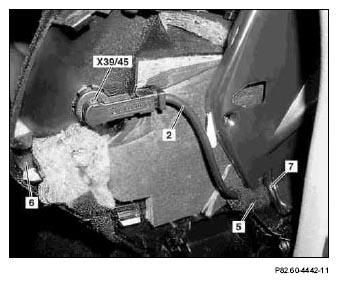

   Fig 4: Identifying Walkman Separation Point, AUX Socket Wiring Harness, Felt Tape And Carrier


7. Counterhold the Walkman separation point (X39/45) and press on the retainer (4) at the glove compartment (6).

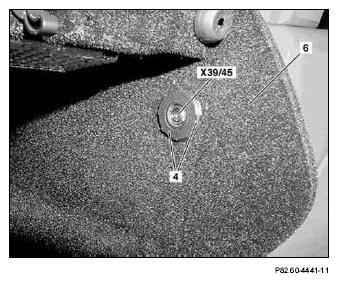

   Fig 5: Identifying Walkman Separation Point, Retainer And Glove Compartment


   Fig 6: Identifying AUX Socket Wiring Harness


8. Route the AUX socket wiring harness (2) along the existing line at the A-pillar and secure it in place with tie straps.

   The AUX socket wiring harness (2) must be routed under the piece of matting (8) as shown.

9. Connect the white, 4-pin coupling from the AUX socket wiring harness (2) to the white, 4-pin plug in the right front cable duct.

   The connection to the cassette player is now complete (X39/36) is now complete.

10. Position the connection to the cassette player (X39/36) inside the right front cable duct.
11. Strap down the extra length of the AUX socket wiring harness (2) inside the right front cable duct.
