Check and adjust rear-end door wiper arm - AR82.30-P-6950T

MODELS 168, 202.07 /08 /09 /18 /19, 203.2, 210.2, 211.2

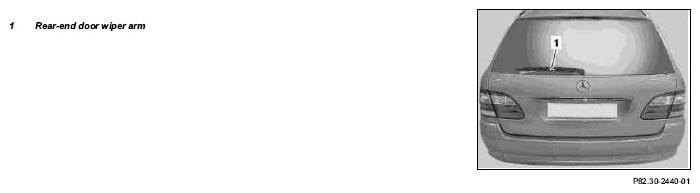

Shown on model 211.2, wiper system in parked position

Fig 1: Identifying Rear-End Door Wiper Arm, Wiper System In Parked Position - Shown On Model 211.2

	Check
	Risk of injury  in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	When working on raised rear-end door wiper arm (1), do not allow it to fall onto the rear window, otherwise damage may occur.
1	Move rear-end door wiper arm (1) out of parked position and move to reverse position	To do this, switch ignition on (circuit 15 or circuit 15R) and switch rear-end door wiper motor on using rear-end door wiper switch or combination switch. As soon as the rear-end door wiper arm (1) is in the reverse position, switch ignition off and switch off rear-end door wiper switch or combination switch.
2	Remove wiper blade	See Operating Instructions
3	Measure angle of incidence of rear-end door wiper arm (1) in relation to rear window in reverse position, then in parked position, and note down	Checking the rear-end door wiper arm (1) angle of incidence in the reverse and parking positions serves to determine whether the rear end door wiper arm (1) requires adjustment.	AR82.30-P-6950-01T
		Angle of incidence of rear-end door wiper arm (1) in reverse position	*BE82.30-P-1001-01F
		Angle of incidence of rear-end door wiper arm (1) in parked position	*BE82.30-P-1002-01F
			Figure
4	Compare test values with settings and adjust angle of incidence of rear-end door wiper arm (1) in relation to rear window if necessary	Angle of incidence of rear-end door wiper arm (1) in reverse position	*BE82.30-P-1001-01F
		Angle of incidence of rear-end door wiper arm (1) in parked position	*BE82.30-P-1002-01F
5.1	Adjust angle of incidence of rear-end door wiper arm (1) in relation to rear window	Only if test values are out of the tolerance range in the reverse and parked positions.	AR82.30-P-6950-02T
		Angle of incidence of rear-end door wiper arm (1) in parked position	*BE82.30-P-1002-01F
			Figure
6	Fit wiper blade	See Operating Instructions
7	Perform rear-end door wiper system function check

Fig 2: Identifying Adjustment Tool Set (211 589 02 21 00)
