Adjust rear-end door wiper arm - AR82.30-P-6950-02T

REAR-END DOOR WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation		Model 168	Models 202.07/ 08/09/ 18/19	Model 203.2
BE82.30-P-1002-01F	Angle of incidence of rear-end door wiper arm in parked position	∠ °	5.0...6.0	1.5...4.5	1.5...4.5

REAR-END DOOR WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation		Model 210.2	Model 211.2
BE82.30-P-1002-01F	Angle of incidence of rear-end door wiper arm in parked position	∠ °	1.5...4.5	1.5...4.5

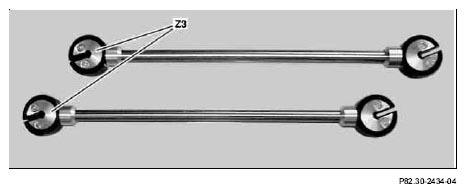

Fig 1: Identifying Adjustment Tool Set (211 589 02 21 00)

The angle of incidence is changed by "twisting" (distorting) the rear-end door wiper arm with the aid of the adjuster lever (Z3).

The rear-end door wiper arm angle of incidence must always be adjusted in the parked position. In doing so the angle of incidence in parked position and reverse position changes by the same amount.

Fig 2: Identifying Adjuster Lever

Shown on model 211.2

Fit angle measuring device (A) with adapter to rear-end door wiper arm (1).
Lower rear-end door wiper arm (1) until all three contact points of the angle measuring device (A) foot are lying against the rear window.
Put adjuster levers (Z3) onto the rear-end door wiper arm (1) that is being adjusted as far apart as possible.
The rear-end door wiper arm (1) is distorted using the adjuster lever (Z3), which has been positioned close to the wiper arm head.

The second adjuster lever (Z3) is used as a counterholder.

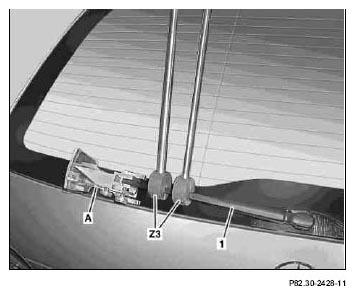

Fig 3: Adjusting Rear-End Door Wiper Arm - Shown On Model 211.2
Push adjuster lever (Z3) in required direction until correct adjustment value is displayed on the scale of the angle measuring device (A).
Remove adjuster lever (Z3) from rear-end door wiper arm (1) and remove angle measuring device (A) with adapter from rear-end door wiper arm (1).
