Retrofit headlamp cleaning system - AN82.15-P-0001P

MODEL 203 except CODE (612b) Xenon headlamp unit

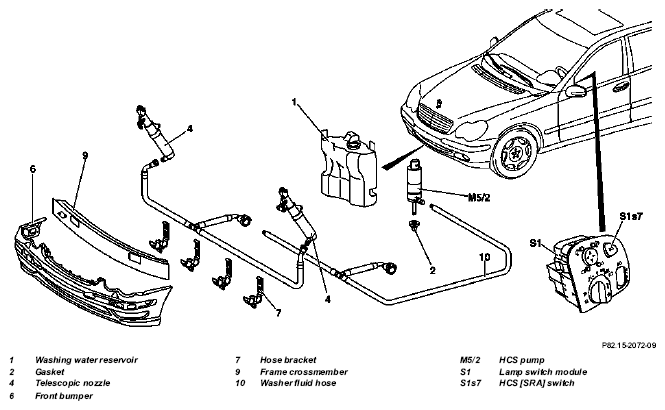

Fig 1: Identifying Headlamp Cleaning System Components (1 Of 2)
G04735947

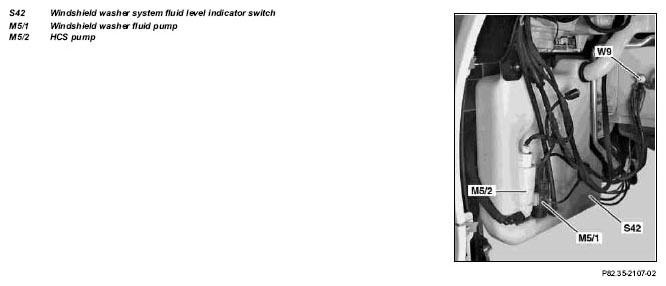

Fig 2: Identifying Headlamp Cleaning System Components (2 Of 2)
G04735948
REMOVING Removal
DANGER Risk of explosion from gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid batteries No fire, sparks, naked flames or smoking. Wear acid-resistant gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
NOTES Notes on battery All models. AH54.10-P-0001-01A
1 Connect quiescent current retention unit Except Code (580a) automatic air conditioning
Except Code (581b) convenience automatic air conditioning
Except Code (450) taxi version
Except Code (670a) residual engine heat utilization system REST
Except Code (875) heated windshield washing unit
REFER TO TESTING & REPAIR     AR54.10-P-1030-07I
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1012-09A
2 Disconnect ground cable of battery
REFER TO TESTING & REPAIR     AR54.10-P-0003P
3 Remove light switch module (S1) IMPORTANT Part eliminated.
REFER TO TESTING & REPAIR     AR54.25-P-3270P
4 Remove front bumper (6) IMPORTANT Part eliminated.
REFER TO TESTING & REPAIR     AR88.20-P-2000P
5 Remove front frame crossmember (9) IMPORTANT Part eliminated.
REFER TO TESTING & REPAIR     AR62.30-P-0001P
6 Remove washing water reservoir (1) and drain Except Code (875) heated windshield washing unit
IMPORTANT Part eliminated.
REFER TO TESTING & REPAIR     AR82.35-P-6000P
7 Remove wiring harness for air conditioning in engine compartment With CODE (580a) automatic air conditioning
REFER TO TESTING & REPAIR   IMPORTANT Part eliminated.
With CODE (581b) convenience automatic air conditioning		 AR54.18-P-0070P
    IMPORTANT Part eliminated. AR54.18-P-0070PA
8 Separate wiring harness for residual engine heat utilization system with code (450) Taxi version
With Code (670a) residual engine heat utilization system REST
With Code (875) heated windshield washing unit
Except Code (580a) automatic air conditioning
Except Code (581b) convenience automatic air conditioning
REFER TO TESTING & REPAIR     AR54.18-P-0080-01P
9 Remove SAM control module with fuse and relay box, front left (N10/1) Except Code (424) Sequentronic automated manual transmission (SEQ)
Except Code (450) taxi version
Except Code (580a) automatic air conditioning
Except Code (581b) convenience automatic air conditioning
Except Code (670a) residual engine heat utilization system REST
IMPORTANT Part eliminated.
REFER TO TESTING & REPAIR     AR54.21-P-1260P
10 Remove cover below instrument panel IMPORTANT Driver's side.
REFER TO TESTING & REPAIR     AR68.10-P-1500P
DISASSEMBLINGASSEMBLING Disassembling, assembling
11 Remove fluid level indicator switch for windshield washing unit (S42) Except Code (875) heated windshield washing unit
12 Remove windshield washer water pump (M5/1) Except Code (875) heated windshield washing unit
13 Remove all gaskets on the washing water reservoir Except Code (875) heated windshield washing unit
14 Disassemble front bumper (6)
REFER TO TESTING & REPAIR     AR88.20-P-2050P
15 Disassemble front frame crossmember (9)
16 Assemble in reverse order IMPORTANT Front frame crossmember (9) is new part. Front bumper (6) is new part.
Except CODE (875) heated windshield washing unit: Washing water reservoir (1) is new part.
17 Install gasket (2) for HCS pump (M5/2) IMPORTANT New part.
18 Install HCS pump (M5/2) IMPORTANT New part.
REMOVING Installing
19 Install SAM control module with fuse and relay box, front left Except Code (424) Sequentronic automated manual transmission (SEQ)
Except Code (450) taxi version
Except Code (580a) automatic air conditioning
Except Code (581b) convenience automatic air conditioning
Except Code (670a) residual engine heat utilization system REST
IMPORTANT New part.
REFER TO TESTING & REPAIR     AR54.21-P-1260P
20 Install washing water reservoir (1) Except Code (875) heated windshield washing unit
IMPORTANT New part.
REFER TO TESTING & REPAIR     AR82.35-P-6000P
21.1 Retrofit headlamp cleaning system wiring harness Except Code (450) taxi version
Except Code (580a) automatic air conditioning
Except Code (581b) convenience automatic air conditioning
Except Code (670a) residual engine heat utilization system REST
Except Code (875) heated windshield washing unit
IMPORTANT New part.		 AN82.15-P-0001-01P
21.2 Retrofit air conditioning wiring harness in engine compartment With CODE (580a) automatic air conditioning
with code (450) Taxi version
With Code (670a) residual engine heat utilization system REST
With Code (875) heated windshield washing unit
IMPORTANT New part.		 AN54.18-P-0001-01P
21.3 Install air conditioning wiring harness With CODE (581b) convenience automatic air conditioning
NOTES Bolt on front left ground (for light unit) (W9).
Connect coupling to HCS pump (M5/2).
IMPORTANT New part.
REFER TO TESTING & REPAIR     AR54.18-P-0070PA
22 Retrofit washer fluid hose (10)   AN82.15-P-0001-05P
23 Install telescopic nozzles (4)
REFER TO TESTING & REPAIR     AR82.15-P-6100P
24 Install front frame crossmember (9) IMPORTANT New part.
REFER TO TESTING & REPAIR     AR62.30-P-0001P
25 Install front bumper (6) IMPORTANT New part.
REFER TO TESTING & REPAIR     AR88.20-P-2000P
26 Install light switch module (S1) with HCS switch (S1s7) IMPORTANT New part.
REFER TO TESTING & REPAIR     AR54.25-P-3270P
27 Installation is carried out in reverse order IMPORTANT Stage 2, 1
28 Perform basic programming with code (450) Taxi version
With CODE (580a) automatic air conditioning
With CODE (581b) convenience automatic air conditioning
With Code (670a) residual engine heat utilization system REST
With Code (875) heated windshield washing unit
REFER TO TESTING & REPAIR     AR00.19-P-0200P
29 Perform version coding for "headlamp cleaning system" IMPORTANT STAR diagnosis tool
30 Carry out operational check
NOTES When modifying the package, enter code or designation of special equipment concerned on vehicle data card and in FDOK Code (600a) headlamp cleaning system
INSPECT Check
31 Check fluid level of windshield washer system and correct if necessary
REFER TO MAINTENANCE     AP82.35-P-8210P
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1012-09A Quiescent current retention unit
PARTS ORDERING NOTES

Part no. Designation Quantity
group 54 Wiring harness for AC and HCS module, REST 1
group 54 Lamp switch module 1
group 54 SAM control module with fuse and relay box, front (except Codes 424, 450, 580a, 581b, 670a) 1
KG 62 Frame crossmember 1
Design group 82 Washing water reservoir (except Code 875) 1
KG 86 Headlamp cleaning system pump 1
KG 86 Left, right nozzle with bolts 2
KG 86 Hose for headlamp cleaning system 1
KG 86 Distributor fitting 1
KG 86 Connecting piece 3
KG 88 Front bumper with panel for headlamp cleaning system 1
Design group 99 Wire holder to front crossmember 4
Design group 99 Sleeve for bracket of headlamp cleaning system pump 1
