Retrofit washer fluid hose - AN82.15-P-0001-05P

1. Clip in hose bracket (7) on frame crossmember (9).

   Four hose brackets (7).

2. Secure washer fluid hose (10) on frame crossmember (9).

Insert washer fluid hose (10) into the hose brackets (7) and close hose bracket (7).

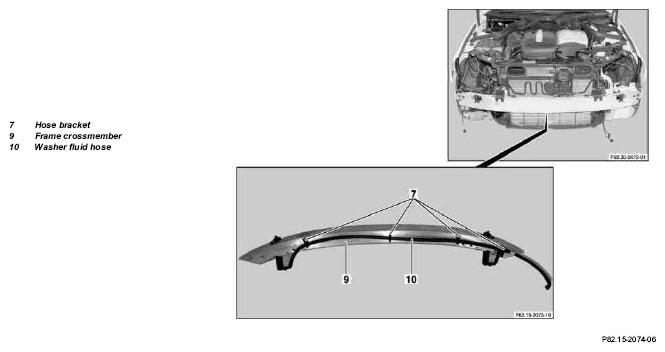

Fig 1: Identifying Washer Fluid Hose And Hose Brackets
