Remove/install engine hood - AR88.40-P-3000P

MODEL 203

Shown in model 203.0

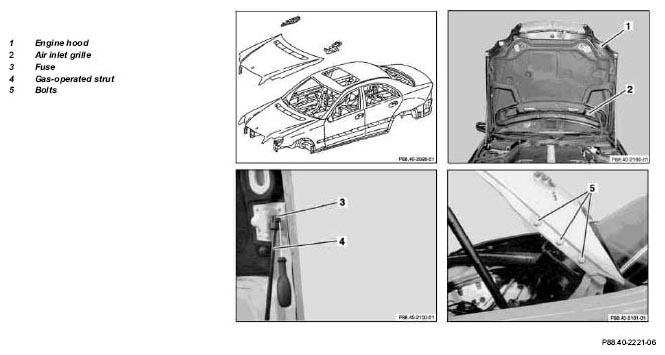

Fig 1: Identifying Engine Hood Remove/Install Components

MODIFICATION NOTES

16.2.00

Value modified from 12 Nm to 8 Nm

Value BA88.40-P-1001-01A modified on engine 203

*BA88.40-P-1001-01A

	Remove/Install
	Risk of injury  to fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
Installation	When replacing engine hood (1) seal seam before painting.	See Paintwork Manual
1	Open engine hood (1)		AR88.40-P-1000P
2	Position protective fender covers
3	Remove air inlet grate (2) on engine hood (1)		AR88.40-P-3001P
4	Mark installation position of engine hood (1)	On engine hood hinges.
5	Lift retainer (3) with screwdriver and unhook gas-operated strut (4)	Secure engine hood (1) with aid of 2nd person to prevent injury and damage from falling down.
6	Unscrew bolts (5) from engine hood (1)		*BA88.40-P-1001-01A
7	Remove engine hood (1) and put down on suitable subsurface	Use 2nd person to prevent paint damage.
8	Install in the reverse order
9	Adjust engine hood		AR88.40-P-3020P

ENGINE HOOD

Number	Designation		Model 203
BA88.40-P-1001-01A	Bolt on engine hood	Nm	8
