Adjust engine hood - AR88.40-P-3020P

MODEL 203

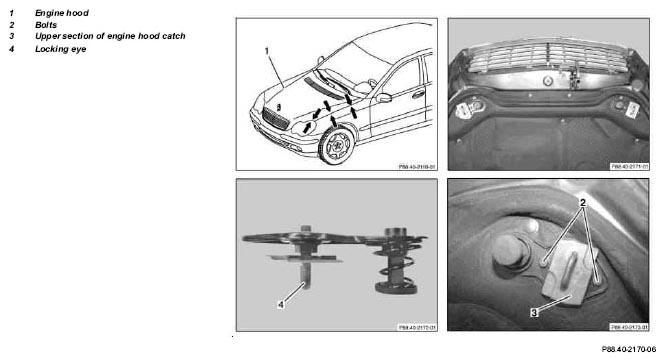

Fig 1: Identifying Engine Hood Adjustment Components (1 Of 2)

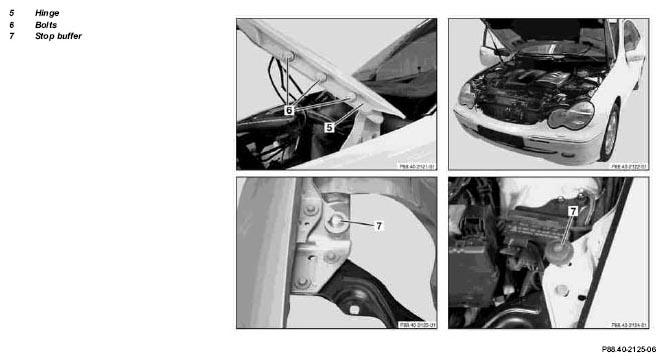

Fig 2: Identifying Engine Hood Adjustment Components (2 Of 2)

	Adjust
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood (1)		AR88.40-P-1000P
2	Remove left engine hood catch upper section (3) and right engine hood catch upper section (3)
3	Loosen bolts (6) for engine hood (1) on hinge (5), adjust engine hood (1) and then tighten bolts (6)	If gap dimensions deviate, see:↓
		Gap dimensions on hoods, doors and lids	*BE60.00-P-1001-01E
			*BA88.40-P-1002-01A
		Feeler gauge	Figure
4	Position engine hood (1) on stop buffer (7)
5	Check engine hood (1) fit in relation to front fender and adjust stop buffer (7) if required	Adjust stop buffer (7) so that engine hood (1) is not distorted, see:↓
		Gap dimensions on hoods, doors and lids	*BE60.00-P-1001-01E
		Feeler gauge	Figure
6	Install left engine hood catch upper section (3) and right engine hood catch upper section (3)		*BA88.40-P-1004-01A
7	Install spiral spring
8	Check whether engine hood catch is locked, for this purpose close engine hood (1) and pull upward with a jerk.	Engine hood must (1) fall automatically into the engine hood catch from a height of 100 - 130 mm (measured above fender tip) and lock.
9	Release engine hood (1) and check whether retaining hood on upper frame crossmember is arrested.	Release lever should be visible for min. 9 mm.

TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number	Designation				Model 203.004/006/ 007/008/016/ 018/020/035/ 040/042/043/ 045/046/052/ 056/061/064/ 065/081/084/ 087	Model 203.204/206/ 207/208/216/ 218/220/235/ 240/242/243/ 245/246/252/ 254/256/261/ 264/265/281/ 284/287/292
BE60.00-P-1001-01E	Gap dimension	Engine hood to fender	Dimension "A"	mm	3.5 (± 1)	3.5 (± 1)
		Engine hood to headlamp	Dimension "R"	mm	4 (-0.5/+1.5)	4 (-0.5/+1.5)
		Engine hood to bumper	Dimension "D"	mm	-	-
		Engine hood to bumper	See figure in		AR60.00-P-0700-01P	AR60.00-P-0700-01PA

TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number	Designation				Model 203.076	Model 203.276
BE60.00-P-1001-01E	Gap dimension	Engine hood to fender	Dimension "A"	mm	3.5 (± 1)	3.5 (± 1)
		Engine hood to headlamp	Dimension "R"	mm	4 (-0.5/+1.5)	4 (-0.5/+1.5)
		Engine hood to bumper	Dimension "D"	mm	4 (± 0.5)	4 (± 0.5)
		Engine hood to bumper	See figure in		-	-

TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

ENGINE HOOD

Number	Designation		Model 203
BA88.40-P-1002-01A	Screw on engine hood hinge	Nm	10
BA88.40-P-1004-01A	Bolt on engine hood catch upper section	Nm	10

Special tools

Fig 3: Identifying Feeler Gauge (129 589 03 21 00)
