Removing and installing fuse and relay box in engine compartment, left front - AR54.15-P-1257I
Models 215, 220

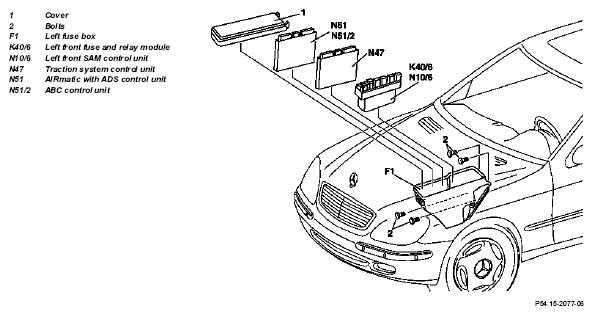

Shows model 220
| Remove/Install | |||
| 1 | Connect quiescent current retention unit | AR54.10-P-1030-07I | |
| 2 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| 3 | Open engine hood and position upright | AR88.40-P-1000M | |
| 4 | Unlock and remove cover (1) of left fuse box (F1) | ||
| 5 | Remove left SAM control unit (N10/6) with left fuse and relay module (K40/6) | AR54.21-P-1260I | |
| 6.1 | Remove AIRmatic with ADS control unit (N51) | AR32.22-P-6000I | |
| 6.2 | Active body control (ABC)N51/2, control unit | AR32.50-P-0023I | |
| 7 | Remove traction system control unit (N47) | AR54.21-P-0816I | |
| 8 | Remove cover below left of instrument panel | AR68.10-P-1500M | |
| AR68.10-P-1500N | |||
| 9 | Remove accelerator pedal | AR30.12-P-1321I | |
| 10 | Remove floor lining on driver's side | ||
| 11 | Loosen line to accelerator pedal from vehicle floor and pull back to left fuse box | ||
| 12 | Remove wiper arms | AR82.30-P-6100M | |
| 13 | Remove water deflector above wiper system | AR83.25-P-1406M | |
| 14 | Separate separable cable ducts inside the left fuse box | ||
| 15 | Pull back the remaining wiring harnesses to the left fuse box | ||
| 16 | Unscrew bolts (2) and remove left fuse box | ||
| 17 | Install in the reverse order |
