Removing and installing water deflector above wiper system - AR83.25-P-1406M
Models 215, 220

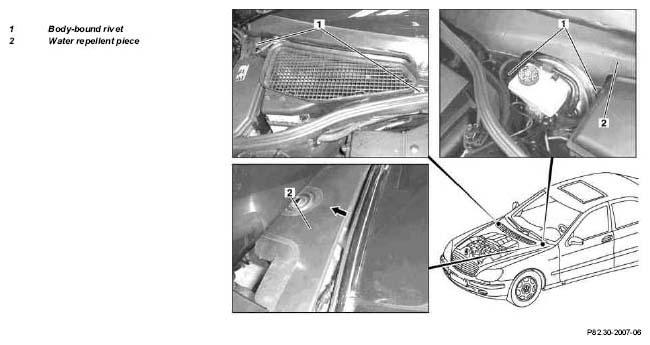

Shows model 220
| Remove/Install | |||
| Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism | AS82.30-Z-0001-01A | |
| 1 | Remove wiper arms | AR82.30-P-6100M | |
| 2 | Remove 4 expansion rivets (1) | ||
| 3 | Pull water deflector (2) upwards out of fold (arrow) | ||
| 4 | Install in the reverse order |
