Remove and install headliner - AR68.30-P-4300GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

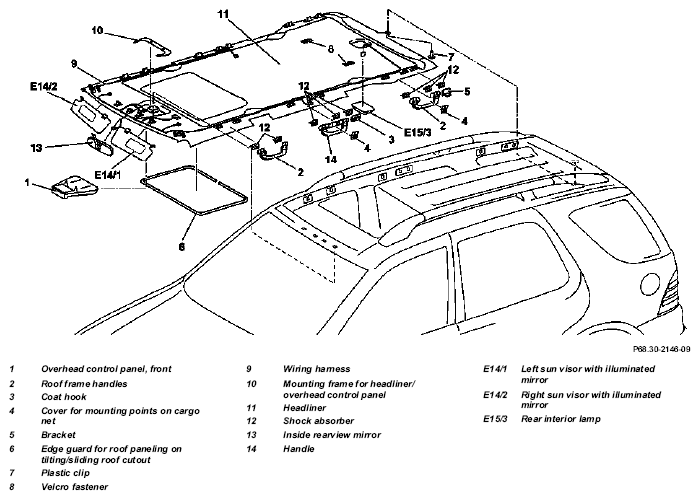

Fig 1: Identifying Headliner Components
G04608275
REMOVINGINSTALLING Remove/install
1 Remove headrest IMPORTANT See owner's manual
2 Remove inside rearview mirror (13) IMPORTANT To vehicle identification number A145272, X708318. AR68.40-P-0001GH
    IMPORTANT As of vehicle identification number A145273, X708319. AR68.40-P-0001GI
3 Remove front overhead control panel (1)   AR82.20-P-1100GH
4 Remove front roof frame handles (2) IMPORTANTUp to 31.08.01:  Open covers for handles, press clip for handle down on each side, simultaneously press handle upward and pull out.
IMPORTANTAs of 01.09.01:  Open cover and unscrew screws.
5 Remove roof frame handles at rear IMPORTANTUp to 31.08.01:  With integral rear dome lamp. Open covers for handles, press clip for handle down on each side, simultaneously press handle upward and pull out
IMPORTANTAs of 01.09.01:  With integrated coat hook. Open cover and unscrew screws.
6.1 Remove roof frame handles in load compartment IMPORTANT Only with 3rd row of seats, Code 847 Up to 31.08.01:  Open covers for handles, press clip for handle down on each side, simultaneously press handle upward and pull out.
As of 01.09.01:  Open cover and unscrew screws.
NOTESInstallation:  only up to 31.8.01 and only with 3rd row of seats, Code 847:
    Prepare headliner for installing handles AR68.30-P-4300-01GH
REFER TO SHOP-MADE TOOLS Fabricate template for installing handles in headliner   WF58.50-P-6830-02GH
7.1 Remove rear dome lamp IMPORTANTAs of 01.09.01:  Open plastic cover, then unscrew screws
8 Disconnect connectors from dome lamps in rear
9.1 Remove coat hanger hook (3) in roof frame IMPORTANTUp to 31.08.01:  Open covers of coat hooks, press both clips together and press coat hooks upward, simultaneously pull out coat hooks.
10 Remove cover for mounting points of cargo net (4) Up to 31.08.01:  open cover and remove screws.
As of 01.09.01:  unclip covers at sides
11 Remove mount (5) on roof frame for mounting third seat row IMPORTANT Open covers for screws and unscrew both screws. Press clips together, simultaneously press mount upward and pull out.
12.1 Remove shock absorber (12) IMPORTANT Only from 01.09.99 to 31.08.01
13 Clip in rear interior lamp (E15/3)   AR82.20-P-0113GH
14 Remove sun visors with illuminated mirror (E14/1 on left and E14/2 right)   AR68.60-P-5480GH
15 Remove paneling on B-pillar   AR68.30-P-4700GH
16 Remove rear roof frame paneling   AR68.30-P-4470GH
17 Remove paneling on C-pillar   AR68.30-P-4490GH
18 Remove rubber door seals
19.1 Pull off edge guard on headliner in sliding / pop-up roof cutout (6) IMPORTANT Only with electric glass sliding/tilting roof, Code 414a.
20 Pull plastic clip (7) out of headliner (11)
21 Unfasten headliner (11) from Velcro strips (8) IMPORTANTInstallation:  Only with electric sliding/ tilting roof in glass version, Code (414a): align headliner at sliding/tilting roof frame.
22 Remove wiring harness (9) from headliner (11)
23 Unclip screw frame for headliner / overhead control panel (10) from headliner
24 Remove headliner (11) through tailgate
25 Install in the reverse order
