Remove/install front overhead control panel - AR82.20-P-1100GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

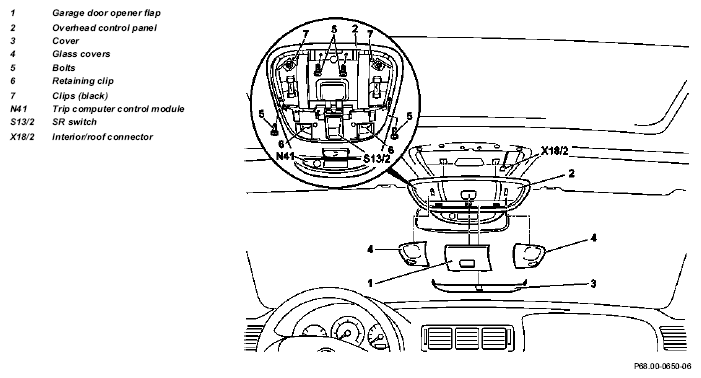

Fig 1: Identifying Front Overhead Control Panel Components

	Remove/install
1	Remove garage door opener flap (1) from overhead control panel (2)
2	Unclip cover (3) on the sliding/tilting roof switch (S13/2)	4 clips.
3	Unclip glass covers (4) from interior lights
4	Unscrew screws (5) below garage door opener flap (1) and glass covers (4)
5	Unclip clips (black) (7) next to the light switches	Installation:  Counterhold mounting plate with puller hooks inside of headliner.
		Hooked extraction tool	Figure
6	Press both retaining clips (6) to rear and simultaneously press overhead control panel (2) to front	Position narrow plastic wedge or screwdriver in front of retaining lugs.
7	Remove overhead control panel (2) downward
8	Remove sliding/tilting roof switch (S13/2)		AR77.20-P-0001GH
9.1	Remove trip computer control module (TRIP) (N41)	With code 245, trip computer, only.	AR54.50-P-0001GH
10	Detach interior/roof connector (X18/2) from overhead control panel (2)
11	Remove overhead control panel (2)
12	Install in the reverse order

Fig 2: Identifying Hooked Extraction Tool (140 589 02 33 00)
