Checking oil pressure of power steering pump - AR46.30-P-0100GH

MODEL 129.059 /064 /068, 163.154 /157 /172 /174 /175, 170.465, 202.026 /029 /033 /086 /089 /093, 208.365 /370 /374 /465 /470, 210.061 /063 /065 /070 /074 /081 /082 /083 /261 /263 /265 /270 /274 /281 /282 /283 /663, 211.061 /065 /070 /076 /080 /082 /083 /261 /265 /270 /276 /280 /282 /283

MODEL 202.133 /134 /193 /194 except CODE (480) Rear axle level control system

MODEL 220.063 /065 /070 /075 /165 /170 /175 except CODE (487) Active Body Control (ABC)

Shown on Engine 112 in Model 163

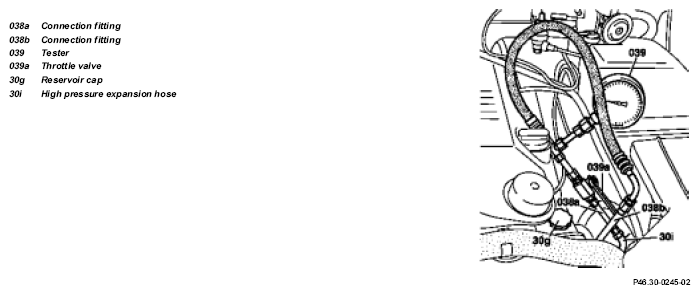

Fig 1: Checking Oil Pressure For Power Steering Pump (1 Of 4)

Fig 2: Checking Oil Pressure For Power Steering Pump (2 Of 4)

Fig 3: Checking Oil Pressure For Power Steering Pump (3 Of 4)

Shown on engine 112 in Model 163

Fig 4: Checking Oil Pressure For Power Steering Pump (4 Of 4)

	Removing
1.1	Open reservoir cap (30g) and extract oil from reservoir of power steering pump.	Model 129, 163, 170, 202, 208, 211, 220 Model 210 without Adaptive damping system (ADS) with level control, code 216b.
		Hand pump	Figure
1.2	Clamp off feed line from reservoir	Model 210 with Adaptive damping system (ADS) with level control, code 216b.
		Clamping device	Fig 6
2	Detach high pressure expansion hose (30i) on power steering pump	On vehicles with tandem pump the testing unit must not be connected to the pressure oil pump for adaptive damping system (ADS) with level control, code 216b.
3	Attach connection fitting (038a) to high-pressure expansion hose (30i).	Special tool 210 589 09 63 00 was replaced by special tool 215 589 01 63 00. Both special tools can be used for carrying out the test.
		Connection fitting	Fig 7
4	Attach connection fitting (038b) to power steering pump	Special tool 210 589 09 63 00 was replaced by special tool 215 589 01 63 00. Both special tools can be used for carrying out the test.
		Connection fitting	Fig 7
5	Connect testing unit (039) between the connection fitting (038a) and connection fitting (038b)	Tester	Fig 8
6	Remove clamp from feed line from reservoir	Model 210 with adaptive damping system (ADS) with level control, code 216b.
7	Fill supply reservoir
	Check and correct power steering fluid level		AP46.00-P-4611BB
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury from bruises and burns if you hold your hand into engine when it is started or when it is running.	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
8	Start engine
9	Increase engine speed to approx. 1000 rpm
	Checking
10	Close throttle cock (039a) and check maximum operating pressure.	Only carry out the test briefly so that the oil temperature does not rise unacceptably.
		Model 129.059/064/068, 163, 170.465, 202.026/ 029/ 086/ 089 /033 /093 /133 /134 /193 /194, 208.365 /465 /370 /374 /470, 210.06 /081 /082 /26 /281 /282 /663 /070 /074 /083 /270 /274 /283	*BE46.30-P-1001-01A
		Model 211	*BE46.30-P-1001-01C
		Model 220.063/065/070/075/165/170/175 without Active Body Control (ABC), code 487a	*BE46.30-P-1001-01B
11	Turn off engine
12.1	Pump off fluid out of the power steering pump's fluid reservoir	Model 129, 163, 170, 202, 208, 211, 220 Model 210 without Adaptive damping system (ADS) with level control, code 216b.
		Hand pump	Figure
12.2	Clamp off feed line from reservoir	Model 210 with adaptive damping system (ADS) with level control, code 216b.
		Clamping device	Fig 6
13	Disconnect tester (039)
	Install
14	Check O-ring on high-pressure expansion hose (30i) and replace if necessary
15	Screw high-pressure expansion hose (30i) onto power steering pump	Model 129.059/ 064/068, 163./154/157 /172/174/175, 170, 202.026 /029 /033 /086 /089 /093, 208.365 /370 /374 /465 /470, 210.061 /063 /065 /070 /074 /081 /082 /083 /261 /263 /265 /270 /274 /281 /282 /283 /663, 202.133 /134 /193 /194 without level control: ↓
		High-pressure expansion hose to power steering pump	*BA46.30-P-1003-01A
		Model 211 with engines 112, 113: ↓
		Banjo bolt, high pressure expansion hose to power steering pump	*BA46.30-P-1002-01M
		Model 220.063 /065 /070 /073 /075 /165 /170/173 /175 without Active Body Control (ABC), code 487a: ↓
		High-pressure expansion hose to power steering pump	*BA46.30-P-1003-01C
16	Remove clamp from feed line from reservoir	Model 210 with adaptive damping system (ADS) with level control, code 216b.
17	Fill power steering pump and bleed	Model 129.059/064/068, 163.154/157/172 /174 /175, 170.465 /202.026 /029 /033 /086 /089 /093, 208.365 /370 /374 /465 /470, 210, 220.063 /065 /070 /075 /165 /170 /175	AR46.30-P-0010B
		Model 211.061 /065 /070 /076 /261 /265 /270 /276 /080 /082 /083 /280 /282 /283	AR46.30-P-0010P
18	Inspect power-steering pump for leaks	Carry out visual inspection.

Power steering pump test specifications

Power steering pump

Power steering pump

Power steering pump

Power steering pump

Power steering pump

Fig 5: Identifying Hand Pump (210 589 00 71 00)

Fig 6: Identifying Clamping Device (000 589 40 37 00)

Fig 7: Identifying Connection Fitting (215 589 01 63 00)

Fig 8: Identifying Tester (124 589 06 21 00)
