Check and correct power steering fluid level - AP46.00-P-4611BB

MODEL 129.059 /064 /068

MODEL 163.154/157/172/174/175

MODEL 168, 170,

202 as of 1.9.95, 210

MODEL 208.365 /370 /374 /465 /470

MODEL 211.041 /042 /052 /054 /056 /061 /065 /070 /072 /076 /077 /080 /082 /083 /084 /087 /089 /090 /092 /241 /242 /254 /256 /261 /265 /270 /272 /276 /277 /280 /282 /283 /284 /287 /289 /290 /292 MODEL 220.025 /026 /083 /084 /087 /125 /126 /183 /184 /187 /875 /878

MODEL 220.028 /063 /065 /067 /070 /073 /075 /128 /163 /165 /167 /170 /173 /175 /178 /179 except CODE (487) Active Body Control (ABC)

MODEL 230.456 /467 except CODE (487) Active Body Control (ABC)

MODEL 414.700

MODEL 215.379

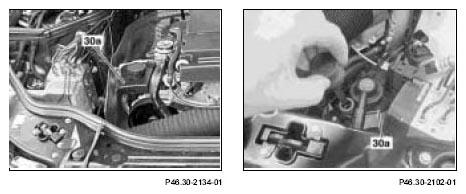

Left picture: Shown on model 220

Right picture: Shown on model 211.056

Left picture: Shown on model 211.042

Right picture: Shown on model 220

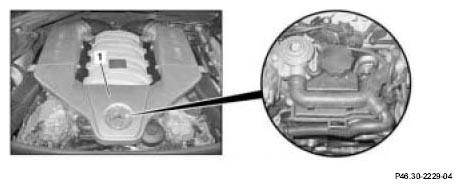

Shown on model 211 with engine 156

Shown on model 210 with rear axle level control system code 480

Shown on model 168

24.3.03

Operating fluid reference changed from BB00.40-P-0236-03A to BB00.40-P-0345-00A

Operating fluid reference changed in series 1001 for model 414.600/700

*BF46.20-P-1001-01A

	Removing
	Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid.	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Before opening the hydraulic circuit of the power steering, thoroughly clean the surrounding area of the separation point. Even the smallest dirt particles introduced into the hydraulic components can lead to malfunctions and damage to the power steering
1.1	Remove cover of charge air manifold with cover above power steering pump	Model 220.025/125 with engine 648.960 Model 220.026/126 with engine 613.960
	Remove/install cylinder head cover trim		AR01.20-P-5014-02C

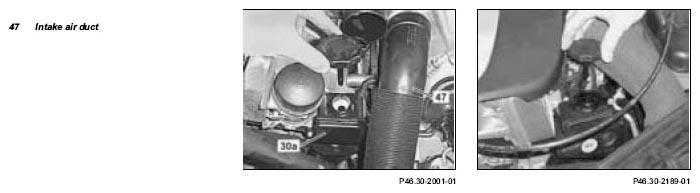

1.2	Pull off intake air duct (47)	Except model 211 with engine 156, 271, 272, 642, except model 230.456
1.3	Remove front engine cover (1)	Model 211 with engine 156
	Checking
2	Check fluid, if required adjust correctly.	Observe temperature specification and fill level marking on dipstick. If there is no temperature specification, read off the fluid level at an oil temperature of approx. 20°C. If the fluid level is too low, determine cause and eliminate subject to a separate order.
		Power steering	*BF46.20-P-1001-01A
3	Check, correct the level control, 4-MATIC, ASD, ADS fluid level	Model 210 with level control on rear axle, code 480, model 210 with level control on rear axle with ADS, code 217 If the fluid level is too low, determine cause and eliminate subject to a separate order.	AP32.30-P-3211BB
	Central hydraulic fluids	Sheet 344.0	BB00.40-P-0344-00A
	Install
4.1	Remove cover of charge air manifold with cover above power steering pump	Model 220.025/125 with engine 648.960 Model 220.026/126 with engine 613.960
	Remove/install cylinder head cover trim		AR01.20-P-5014-02C
4.2	Mount intake air duct (47)	Except model 211 with engine 156, 271, 272, 273, 642 except model 230.456
4.3	Install front engine cover (1)	Model 211 with engine 156

Number	Designation			Model 129	Model 163	Model 168
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.2	≈0.8
		MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0236-03A	BB00.40-P-0345-00A

Number	Designation			Model 170	Model 202	Model 208
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.0	≈1.0
		MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0236-03A	BB00.40-P-0236-03A

Number	Designation			Model 210	Model 211	Model 215
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.1	≈1,25
		MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0345-00A	BB00.40-P-0345-00A

Number	Designation			Model 220 without code 487	Model 230 without code 487	Model 414.700
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.0	≈0.8
		MB steering gear oil	Sheet	BB00.40-P-0345-00A	BB00.40-P-0345-00A	BB00.40-P-0345-00A
