Fill power steering pump and bleed - AR46.30-P-0010B

MODEL 129.059 /064 /068, 163.154 /157 /172 /174 /175, 170.465, 202.026 /029 /033 /086 /089 /093, 208.365 /370 /374 /465 /470, 210

MODEL 220

except CODE (487) Active Body Control (ABC)

with CODE (979) Special protection version

with CODE (Z04) Light armoring

with CODE (Z07) Top protection

MODEL 230 except CODE (487) Active Body Control (ABC)

Models 163,170, 220,

Model 129, 202, 208,

Model 210 without level control

Model 210 with level control (tandem pump)

23.4.06

Document adapted to the revised procedure

	Remove/install
	Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid.	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Hoist vehicle with lifting platform until wheels are free
2	Remove cover of charge air manifold together with cover above power steering pump	Model 220.025/125/026/126
	Charging

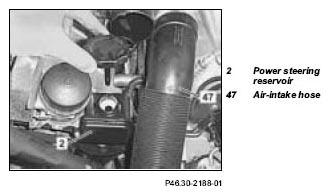

3	Fill the expansion reservoir (2) of the power steering to approx. 10 mm below the upper wedge of the container with MB steering gear oil	Do not start the engine!  If the engine is started there is a risk of air entering the hydraulic steering system, which is then extremely difficult to remove.
		Fill the expansion reservoir (2) to approx. 10 mm below the upper edge of the reservoir with MB steering gear oil.
		Refill with MB-steering gear oil continuously until the oil level remains constant.
		Model 129, 163, 170, 202, 208, 220, 230, Model 210 without level control	*BF46.20-P-1001-01A

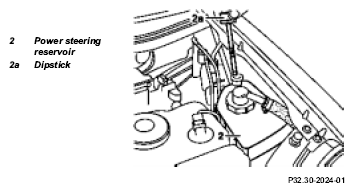

		Model 210 with level control	*BF32.30-P-1001-01A
	Bleeding
4	Turn steering wheel from steering stop to steering stop	Do not start the engine!  If the engine is started there is a risk of air entering the hydraulic steering system, which is then extremely difficult to remove. Turn steering wheel slowly from steering stop to steering stop until bubbles are no longer visible in the expansion reservoir (2). Repeat turning the steering from stop to stop several times (up to 30 times). During this process, MB steering gear oil must be poured into the expansion reservoir (2) by a second person.
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Start engine without moving the steering	Allow engine to run for approx. 1 min at idle speed. During this process, a second person must observe the oil level in the expansion reservoir (2) and add MB steering gear oil if necessary.
6	Turn steering wheel from steering stop to steering stop	When the engine is running turn the steering wheel slowly several times from steering stop to steering stop, meanwhile adding MB steering gear oil in expansion reservoir (2). Repeat the procedure until the oil level in the expansion reservoir (2) remains constant and bubbles are no longer visible.
	Checking
7	Check oil level in the expansion reservoir (2) and fill up to the maximum fill level
	Power steering - checking and correcting oil level	Model 202 up to 31.8.95	AP46.00-P-4611BA
		Model 202 as of 1.9.95, models 129, 163, 170, 208, 210, 220, 230	AP46.00-P-4611BB
8	Test run engine and check that steering system is not leaking and is functioning correctly	If leaks are found, determine the cause and rectify, subject to separate repair order.
9	Install in the reverse order

Number	Designation			Model 129	Model 163	Model 170
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.2	≈1.0
		MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0236-03A	BB00.40-P-0236-03A

Number	Designation			Model 202	Model 208	Model 210
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.0	≈1.0
		MB steering gear oil	Sheet	BB00.40-P-0236-03A	BB00.40-P-0236-03A	BB00.40-P-0236-03A

Number	Designation			Model 220 without code 487	Model 230 without code 487
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈1.0	≈1.0
		MB steering gear oil	Sheet	BB00.40-P-0345-00A	BB00.40-P-0345-00A

Number	Designation			Model 210 with level control/ADS
BF32.30-P-1001-01A	Filling capacity	Level control system, filling system for the first time	Liters	≈2
		Specifications for Operating Fluids	Sheet	-
			Sheet	BB00.40-P-0344-00A
