Removing, installing |
|
|
 Installation |
Replace self-locking nuts and bolts |
|
|
| 1.1 |

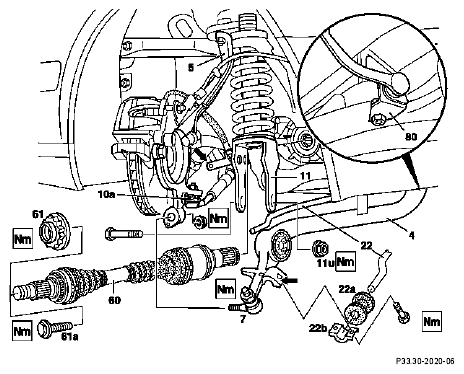

Detach twelve-point collared nut (61) on front axle shaft |
First version |
AR33.30-P-0620-01A |
| |
|
 |
*BA33.30-P-1001-02A |
 |
Caulker for securing twelve-point collared nut |
|
WF58.50-P-3330-01A |
 |
Bolted connection, front axle shaft to front axle shaft flange, modified |
|
BT33.30-P-0003-01D |
| 2.1 |
Detach hexagon collared bolt (61a) on front axle shaft |
Second version |
AR33.30-P-0620-05D |
| |
|
|
*BA33.30-P-1004-02A |
| 3 |
Remove lower engine compartment covering |
|
AR61.20-P-1105AB |
| 4 |
Detach brake hose bracket (arrow) on shock absorber shackle |
|
|
| 5 |
Detach retaining bracket (22b) of torsion bar (22) from both lower wishbones (4) |
|
*BA32.20-P-1001-02E |
| 6 |
Pull rubber mount (22a) off torsion bar |
|
|
| 7.1 |
Detach linkage for headlamp range adjustment (80) |
Right side (if fitted) |
|
| 8 |
Press tie rod joint (10a) out of steering knuckle |
|
|
| |
|
Thrust piece |
Figure |
| |
|
Puller |
Figure |
| |
|
|
*BA46.40-P-1002-01A |
| 9 |
Press supporting joint (7) out of steering knuckle (5) |
Replace self-locking nut. |
AR33.20-P-0440-01D |
| |
|
Thrust piece |
Figure |
| |
|
Puller |
Figure |
| |
|
|
*BA33.20-P-1004-01A |
| 10 |
Detach shock absorber (11) from lower wishbone (4) |
Nut (11u) |
*BA32.25-P-1003-01B |
| 11 |
Slacken nuts for lower wishbone (4) on front axle carrier |
 Installation:
Tighten the nuts only when the vehicle is standing on its wheels in curb condition. |
*BA33.20-P-1010-01A |
| 12 |
Press torsion bar (22) over retaining bracket (arrow) on lower wishbone (4) using a suitable tool |
|
|
| 13 |
Pull steering knuckle (5) outwards and slide front axle shaft (60) out of front axle shaft flange |
Tie steering knuckle to one side using suitable wire. |
|
| 14.1 |
Press out and remove right front axle shaft (60) |
When sliding out the front axle shaft, push the wishbone down using a suitable tool.
Do not damage the rubber boot and rpm sensor rotor.
To avoid damaging the wheel bearings, the vehicle must not
be moved on its wheels with the front axle shaft removed. |
AR33.30-P-0620-02A |
| 15.1 |
Drive out and remove left front axle shaft (60) |
When sliding out the front axle shaft, push the wishbone down using a suitable tool.
Do not damage the plastic guard ring, rubber boot and rpm sensor rotor. To avoid damaging the wheel bearings, the vehicle must not
be moved on its wheels with the front axle shaft removed. |
AR33.30-P-0620-03A |
 |
Checking |
|
|
| 16 |
Check joints and rubber boots for leaks and damage |
If the inner joint is defective: ↓
Replace front axle shaft complete.
If the outer joint is defective, or if the rubber boots are leaking or damaged: ↓ |
|
| |
|
Replace rubber boots on front axle shaft |
AR33.30-P-0660A |
| 17 |
Install in the reverse order |
|
|
