Retrofit infrared remote control additional receiver - AN80.30-P-0001A
MODEL 210.0 with CODE (954) Avantgarde with DAS 2/2a

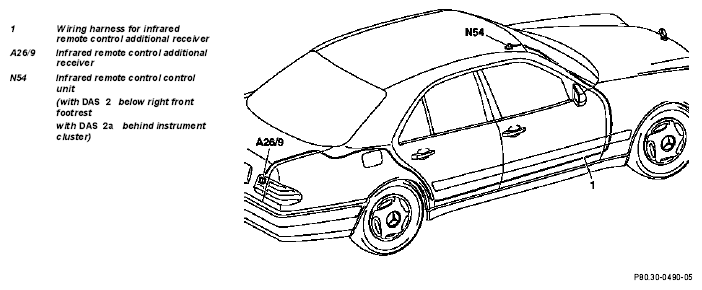

Connection schematic for infrared remote control additional receiver
| Remove | |||
| 1 | Disconnect ground line from battery | AR54.10-P-0003A | |
| 2 | Remove RCL control unit ( DAS 2 ) | AR80.30-P-4400FF | |
| 3 | Remove instrument cluster ( DAS 2a ) | AR54.30-P-6015EA | |
| 4 | Remove glove compartment ( DAS 2a ) | AR68.10-P-1400F | |
| 5 | Remove door sill moldings on right front and rear doors | ||
| 6 | Remove cover on A-pillar at bottom right | ||
| 7 | Remove B-pillar paneling on bottom right | ||
| 8 | Open wiring duct cover in right footwell and on door sill on right front and rear doors | ||
| 9 | Open wiring harness cover next to right rear seat backrest | ||
| 10 | Remove trunk paneling on right | ||
| 11 | Remove trunk lid paneling | ||
| Install | |||
| 12 | Retrofit wiring harness for additional receiver | AN80.30-P-0001-01A *WH58.30-Z-1004-20A |
|
| 13 | Retrofit additional receiver | AN80.30-P-0001-02A | |
| 14 | Install in the reverse order | ||
| 15 | Carry out function check |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| A 170 820 01 97 | Additional receiver | 1 |
| A 170 545 04 28 | Plug | 1 |
| A 170 545 00 26 | Female contact | 3 |
| A 002 546 00 41 | Connector sleeve (solder connector) | 3 |
| A 004 989 53 71 | Glue sealant | 1 |
| Commercially available | Line FLK 1 mm2 green/brown (gn/br), green/black (gn/sw), green/violet (gn/vi) | 3 x 6 m |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1004-20A | Hot-air gun |
