Removing and installing infrared remote control module - AR80.30-P-4400FF

MODEL 210 up to 28.2.97 with CODE (491) USA version

with infrared remote control

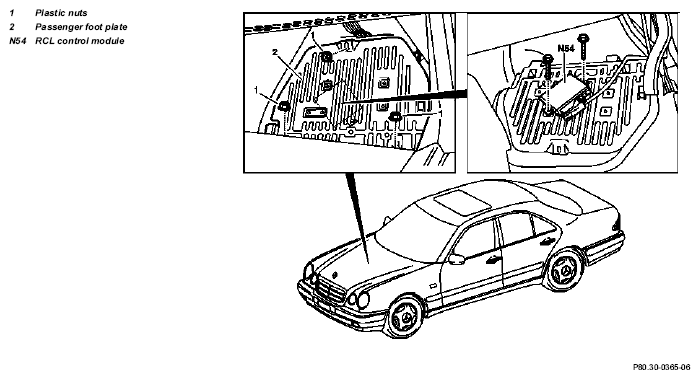

Fig 1: Identifying Infrared Remote Control Module Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Fold floor covering for foot plate on passenger side back
2	Remove Styrofoam panel
3	Unscrew plastic nuts (2) on passenger foot plate (2)	(3 each)
4	Move passenger foot plate (2) to rear
5	Disconnect electrical connector on RCL control module (N54)
6	Unscrew mounting screws on RCL control module (N54)
7	Remove RCL control module (N54)	When replacing the RCL control module or one of the remote control keys always indicate the lock number and chassis number, because the parts are matched to one another
8	Reinstall in opposite order
