Removing and installing cover on front seat backrest - AR91.18-P-1820K

MODEL 208

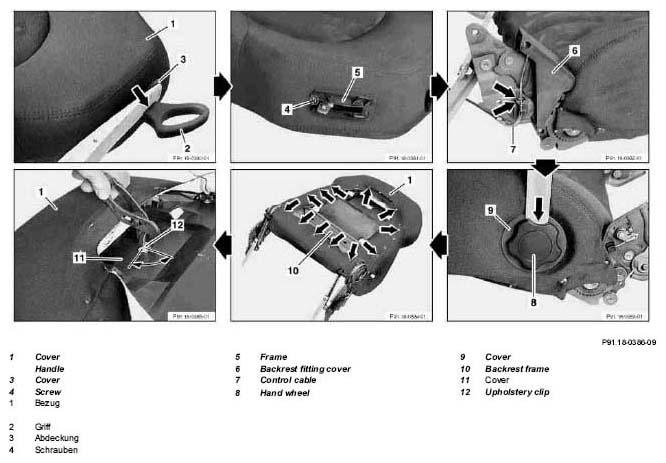

Fig 1: Identifying Cove On Front Seat Backrest Remove/Install Components (1 Of 2)

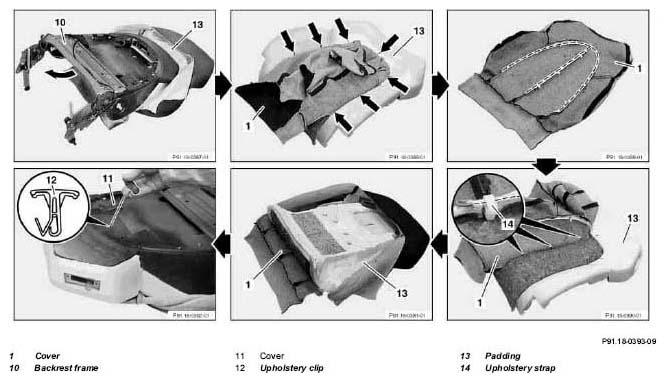

Fig 2: Identifying Cover On Front Seat Backrest Remove/Install Components (2 Of 2)

	Removal, installation
1	Front seat backrest removed		AR91.10-P-1060K
2	Tensioning element removed on front seat backrest		AR91.10-P-1910K
3	Head restraint guide removed on front seat		AR91.16-P-0050K
4	Pull off or unclip handle (2) and cover (3)		Fig 3
		Replace handle (2) after disassembly
5	Unscrew screw (4) and remove frame (5)
6	Unscrew cover (6) on left and right (2 screws) and remove
7	Remove pull cable (7)
8	Pull off hand wheel (8) and unclip cover (9) below		Fig 3
9	Unhook cover (1) from backrest frame (11) (arrows)
10	Turn upholstery clip (12) 90° and remove	Use to install	Fig 5
11	Remove backrest frame (10) from padding (13)
12	Fold cover (1) back over padding (13)
13	Release upholstery strap (14) and remove cover (1) from padding (13)		Figure
		Use to install
14	Reinstall in opposite order

Fig 3: Identifying Installation Wedge (110 589 03 59 00)

Fig 4: Identifying Insertion Tool (202 589 08 63 00)

Fig 5: Identifying Removal And Installation Tool (116 589 01 62 00)
