Removing and installing front seat backrest - AR91.10-P-1060K

MODEL 208

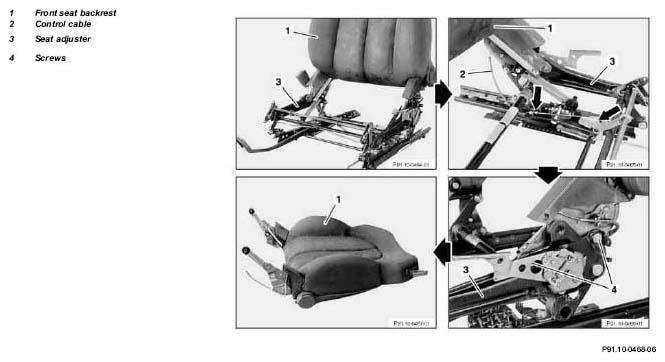

Fig 1: Identifying Front Seat Backrest Remove/Install Components

	Removal, installation
1	Front seat cushion removed		AR91.10-P-1070K
2	Unhook control cable (2) and control cable sleeve on seat adjuster (3)
3	Unscrew screws (4) on backrest fitting on left and right		*BA91.10-P-1003-01A
		Use T45 inner Torx socket
4	Remove front seat backrest (1) from seat adjuster (3)
5	Reinstall in opposite order

FRONT SEATS

Number	Designation		Model 208
BA91.10-P-1003-01A	Screws on backrest fitting	Nm	33
