Removing and installing center panel on front seat backrest - AR91.10-P-1910K

MODEL 208

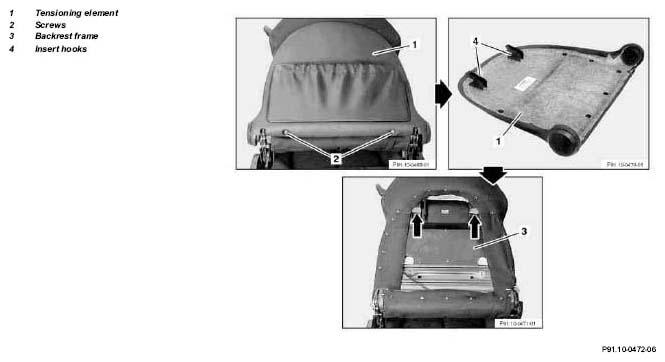

Fig 1: Identifying Center Panel On Front Seat Backrest Remove/Install Components
G04729751
REMOVINGINSTALLING Removal, installation
1 Move front seat forward and fold backrest forward
2 Unscrew screws (2)
3 Remove tensioning element (1) from backrest frame (3) downward IMPORTANT When installing insert the two insert hooks (4) at the top into the backrest frame (3, arrows)
4 Reinstall in opposite order
