Convenience closing/opening with lock switch, function - GF80.45-P-2004KA
MODEL 208.4 with CODE (491) U.S. version with CODE (498) Japanese version

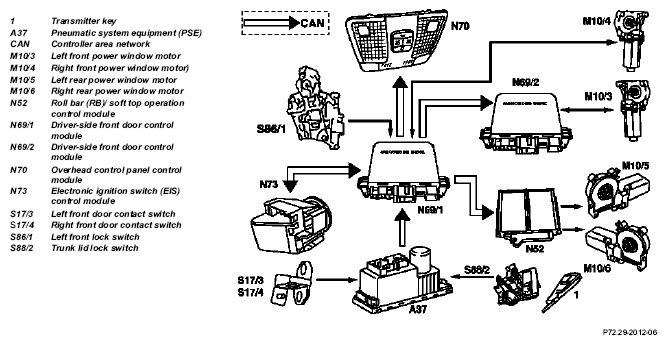

Networking
Function prerequisites :
- no overvoltage/undervoltage
- circuit 15_off and circuit 15R_off
- all doors closed.
Convenience closing/opening on driver door with lock switch, function
When the left front lock switch (convenience) (S86/1) is actuated, the central locking function is triggered. Moreover, if the lock switch is pressed for longer than 5 seconds, the driver front door control module (N69/1) sends the convenience locking command to the CAN. The command is sent as long as the lock switch is operated.
The door control modules execute the power window convenience closing function.
Convenience closing/opening with lock switch, trunk lid In this case, the trunk lid lock switch (convenience) (S88/2) is actuated and the CAN command sent by the pneumatic system equipment (PSE), combination functions (A37).
When the "Unlock vehicle" button is pressed, the corresponding convenience opening functions are executed.
| Convenience opening of power windows | GF72.29-P-3004KA | ||
| Closing power windows with convenience feature | GF72.29-P-3005KA | ||
| Central locking | GF80.20-P-0005A |
