Removing and installing top section of instrument panel - AR68.10-P-1020G
MODEL 170
| Removal, installation | |||
| 1 | Remove paneling on A-pillar | AR68.30-P-4050G | |

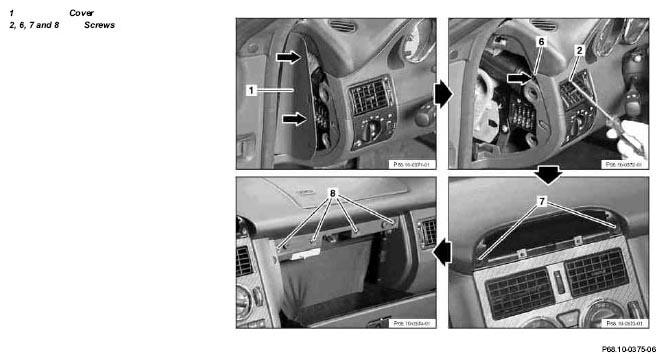

| 2 | Remove cover (1) on left and right | ||
| 3 | Unscrew screws (2) on the two side air nozzles | ||
| 4 | Unscrew screws (6, arrow) on left and right | ||
| 5 | Remove stowage compartment or beverage holder | AR68.10-P-1600G | |
| 6 | Unscrew screws (7, 2 each) | ||
| 7 | Open glove compartment cover and unscrew screws (8, 4 each) | ||

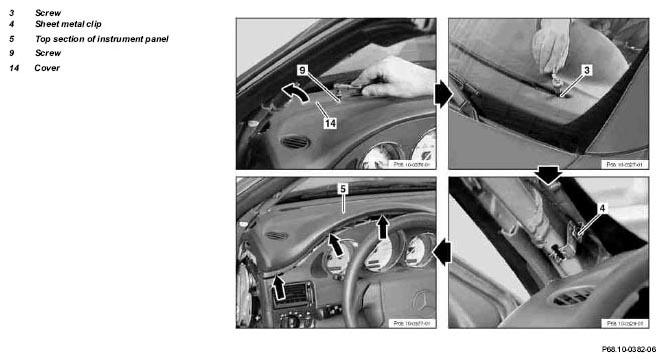

| 8 | Remove cover (4) above both defroster nozzles by unscrewing screws (9) | ||
| 9 | Lift cover (14) pull outward and remove | ||
| 10 | Unscrew screws (3) on left and right | ||
| 11 | Remove sheet metal clips (4) on left and right A-pillars | ||

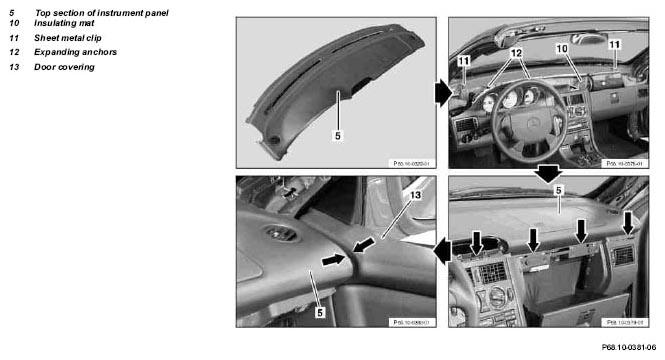

| 12 | Lift top section of instrument panel (5) and remove toward rear | ||

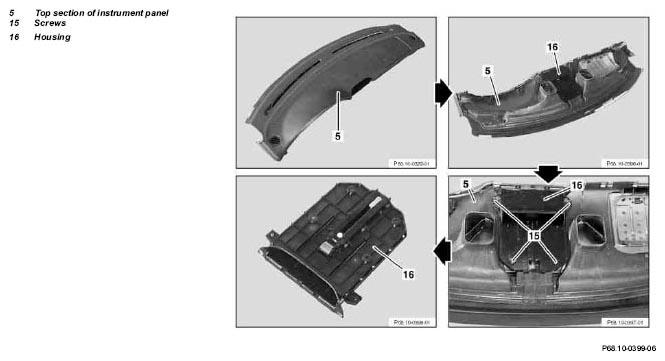

| 13 | Lay top section of instrument panel (5) down on suitable surface and remove housing (16) by unscrewing screws (15, 4 each) | ||
| 14 | Reinstall in opposite order, paying attention to uniform gap in relation to door covering (13) on left and right side |
