Removing and installing stowage compartment or beverage holder - AR68.10-P-1600G

MODEL 170

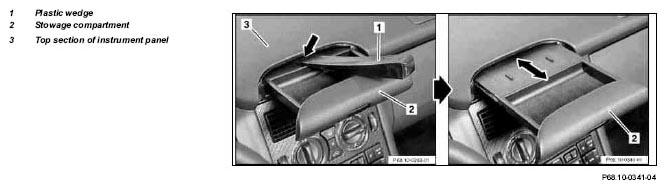

Fig 1: Identifying Stowage Compartment Or Beverage Holder Remove/Install Components

	Removal
1	Open stowage compartment (2)
2	Insert plastic wedge (arrow) at top between top section of instrument panel (3) and stowage compartment (2) until the stowage compartment (2) can be pulled out	In order to remove the housing from the stowage compartment (2), it is necessary to remove the top section of the instrument panel (3)	AR68.10-P-1020G
	Installation
3	Slide stowage compartment (2) into lateral guides until it arrests at the top
4	Check automatic opening function
5	Close stowage compartment (2)

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
