Remove/Install Low Temperature Water Circuit Radiator - Ar09.41-P-6935Im
Engine 275.980 In Models 215.379, 220.179
Shown On Model 220

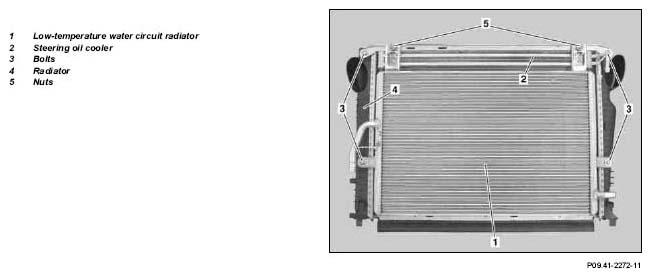

Fig 1: Identifying Low Temperature Water Circuit Radiator Remove/Install Components - Shown On Model 220
Modification Notes
| 1.12.05 | Cooling system | Engine 275.980 in model 215 | *BF20.00-P-1001-02Q |
| Cooling system | ENGINE 275.980 in MODEL 220 | *BF20.00-P-1001-02Q |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury
to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove radiator unit | AR20.20-P-3871IM | |
| 2 | Unscrew bolts (3) from radiator for low-temperature water circuit (1) and steering oil cooler (2) | ||
| 3 | Remove radiator for low-temperature water circuit (1) and steering oil cooler (2) from radiator (4) | ||
| 4 | Remove nuts (5) for radiator for low-temperature water circuit (1) from steering oil cooler (2) | ||
| 5 | Remove steering oil cooler (2) | ||
| 6 | Install in the reverse order | ||
| 7 | Pour in coolant | *BF20.00-P-1001-02Q | |
| 8 | Bleed low temperature circuit | AR20.00-P-1145H | |
| 9 | Inspect cooling system for leaks | AR20.00-P-1010HN |
| Number | Designation | Engine 275.980 in model 215 | Engine 275.980 in model 220 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02Q | Cooling system | Total filling capacity | Main circuit | Liters | ≈12.5 | ≈12 |
| Low temperature circuit | Liters | ≈2,1 | ≈2.1 | |||
| Filling capacity of anticorrosion and antifreeze down to -37°C | Main circuit | Liters | ≈6.25 | ≈6 | ||
| Low temperature circuit | Liters | ≈1 | ≈1 | |||
| Specifications for Operating Fluids | Sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | |||
| Sheet | BB00.40-P-0325-00A | BB00.40-P-0325-00A | ||||
