Remove/install radiator unit - AR20.20-P-3871IM

ENGINE 275.980 in MODEL 215.379, 220.179

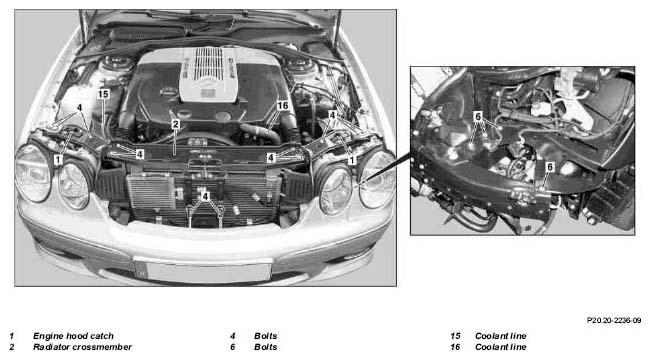

Fig 1: Identifying Radiator Unit Remove/Install Components - Engine 275.980 In Model 215.379

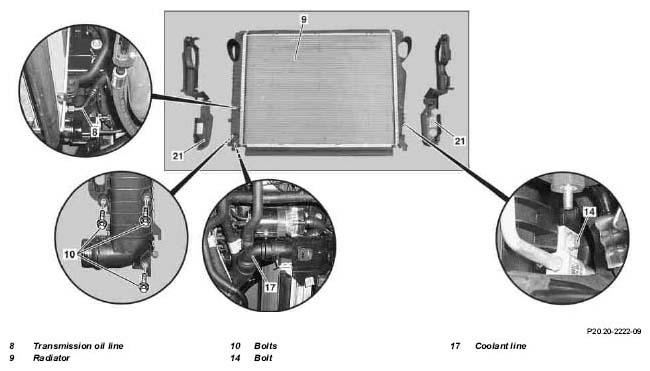

Fig 2: Identifying Removal/Installation Transmission Oil Line, Radiator And Coolant Line

MODIFICATION NOTES

1.12.05	Cooling system	Engine 275.980 in model 215	*BF20.00-P-1001-02Q
	Cooling system	Engine 275.980 in model 220	*BF20.00-P-1001-02Q

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning  and caustic burns caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
1	Disconnect battery ground line	Turn key in electronic ignition switch EIS into position "0". Key cannot be withdrawn. Vehicles with Keyless Go, code 889: Switch off engine, remove Keyless Go cards from the vehicle and store outside of transmitter range. Installation:  After connecting, read out diagnostic trouble code memory, set time at instrument cluster, encode radio, normalize power windows and activate steering angle sensor. Vehicles with stationary heater: adjust time display on stationary heater.	AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
2	Remove fan shroud		AR20.40-P-6800IM
3	Drain coolant at radiator		AR20.00-P-1142H
	Notes on coolant	All engines	AH20.00-N-2080-01A
4	Drain coolant from low-temperature circuit		AR20.00-P-1142HM
5	Remove fender liner front section in front fender		AR88.10-P-1300M
6	Remove both lamp units		AR82.10-P-4730MA
7	Remove hood lock (1) from radiator crossmember (2)		AR88.40-P-3200M
8	Remove both clips from radiator crossmember (2)
9	Remove bolts (4)
10	Remove radiator crossmember (2)
11	Unscrew bolts (6) at both headlight mounts
12	Detach transmission oil line (8) at radiator (9)	Seal the connections.
		Set of plugs	Figure
			*BA20.20-P-1001-01A
13	Remove screws (10) on bracket for circulation pump for low-temperature water circuit at the radiator (9)
14	Disconnect coolant lines from radiator for low-temperature water circuit
15	Unscrew bolt (14) for the AC line bracket at the radiator (9)
16	Disconnect coolant lines (15, 16, 17) from the radiator (9)	Installation:  Fit new O-rings to the connection fittings. Check coolant lines (15, 16, 17) for wear and damage, replace as necessary.
17	Disconnect power steering fluid lines from steering radiator
18	Unscrew condenser nuts from low-temperature radiator
19	Remove radiator unit by extracting upward
20	Install in the reverse order
21	Pour in coolant		AR20.00-P-1142H
22	Bleed cooling system		AR20.00-P-1142-06GA
23	Bleed low temperature circuit		AR20.00-P-1145H
24	Inspecting cooling system for leaks		AR20.00-P-1010HA
25	Check oil level in automatic transmission, correct if necessary		AR27.00-P-0100AC
26.1	Check / adjust sensor setting of Distronic (DTR)	Vehicles with Distronic (DTR), code 219a.	AR30.30-P-1000R

RADIATOR, COOLANT HOSES

Number	Designation		Engine 275
BA20.20-P-1001-01A	Union nut, automatic transmission oil line to radiator	Nm	25

COOLING SYSTEM

Number	Designation				Engine 275.980 in model 215	Engine 275.980 in model 220
BF20.00-P-1001-02Q	Cooling system	Total filling capacity	Main circuit	Liters	≈ 12.5	≈ 12
			Low temperature circuit	Liters	≈ 2.1	≈ 2.1
		Filling capacity of anticorrosion and Antifreeze down to -37°C	Main circuit	Liters	≈ 6.25	≈ 6
			Low temperature circuit	Liters	≈1	≈1
		Specifications for Operating Fluids		Sheet	BB00.40-P-0310-01A	BB00.40-P-0310-01A
				Sheet	BB00.40-P-0325-00A	BB00.40-P-0325-00A

Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)
