Retrofit vehicle video system - AZ82.60-P-0004M: Notes
MODEL 220.0 except CODE (450) Tax version except CODE (979) Special protection version
Rear Seat Entertainment System (RSES)
| Remove | |||
| 1 | Connect no load current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003I | |||
| 3 | Remove rear seat bench | ||
| Remove/install rear seat cushion | MODELS 220.0 /1 with CODE (223b) Electrically adjustable rear bench seat, MODELS 220.875 /878 vis-a-vis seats. | AR91.12-P-1020M | |
| MODELS 220.0/1 except CODE (223b) Electrically adjustable rear bench seat, except CODE (224c) Electrically adjustable individual rear seats with seat ventilation, heated seats and memory package. | AR91.12-P-1020MA | ||
| MODELS 220.0/1 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package | AR91.12-P-1020MB | ||
| 4 | Release rear SAM | ||
| Install | |||

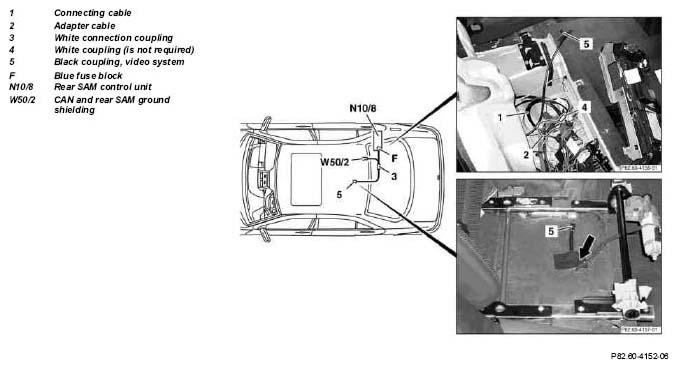

| 5 | Retrofit wiring harness. | AZ82.70-P-0001-04M | |
| 6 | Install Rear Seat Entertainment System (RSES) | With individual seats ↓. |
|
| Retrofit video system console | AZ82.60-P-0004-08M | ||
| 7 | Connect Rear Seat Entertainment System (RSES) |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 66 03 | Basic kit | 1 |
| B6 782 6612 | Screen | 1 |
| B6 782 6605 | DVD player including remote control for: Europe, Japan, South Africa and Middle East incl. Egypt | 1 |
| B6 782 6604 | DVD player including remote control for: Canada, USA and American Territories | If necessary |
| B6 782 6606 | DVD player including remote control for: South East Asia and East Asia incl. Hong Kong | If necessary |
| B6 782 6607 | DVD player including remote control for: Australia, New Zealand, Pacific Islands, Central and South America Caribbean | If necessary |
| B6 782 6608 | DVD player including remote control for: former Soviet Union, Indian subcontinent, Africa, North Korea, Mongolia | If necessary |
| B6 782 6609 | DVD player including remote control for: China | If necessary |
| B6 787 4000 | Cable set accessory SAM/F (veh. without trailer hitch (code 550)) | If necessary |
| B6 787 4001 | Cable set accessory SAM/F (veh. with trailer hitch (code 550)) | If necessary |
| B6 782 6610 | Headphones - passive NoiseGuard | If necessary |
| A220 840 0149 | Console bracket (attachment for vehicles without ski bag) | If necessary |
| Commercially available | Sheet metal screws for console bracket (4.8x16 mm) | If necessary |
| Commercially available | 7.5 Amp fuse | If necessary |
