Remove/install rear seat cushion - AR91.12-P-1020MB

MODEL 220.0 /1 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

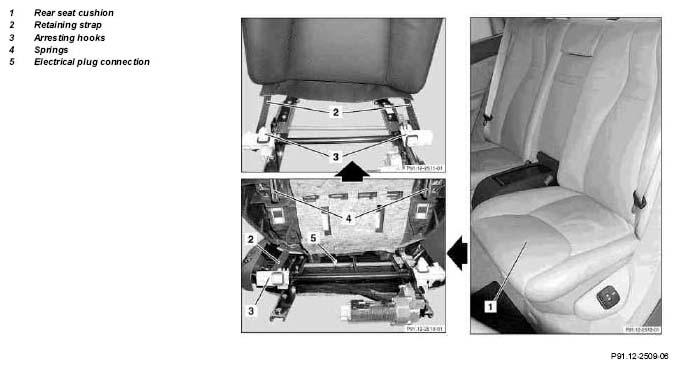

Fig 1: Identifying Rear Seat Cushion Remove/Install Components

	Remove/install
1	Move rear seat cushion (1) fully forwards
2	Press the springs (4) under the rear seat cushion (1) outwards and unhook the rear seat from the locking hooks (3)
3	Disconnect electrical connector for heated seats (5)
4	Disconnect electrical connector of seat ventilation (5) and heated seats
5	Unhook tensioning strap (2) on the left and right of the locking hooks (3)	Installation:  Attach the tensioning straps (2) on the left and right in sequence and lock the rear seat cushion in position.
6	Remove front seat backrest (1) from seat adjuster	Installation:  Ensure that the pins on the back of the seat adjuster move in the guides on the seat.
7	Install in the reverse order
