Remove/install rear seat cushion - AR91.12-P-1020MA

MODEL 220.0 /1 except CODE (223b) Electrically adjustable rear bench seat except CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

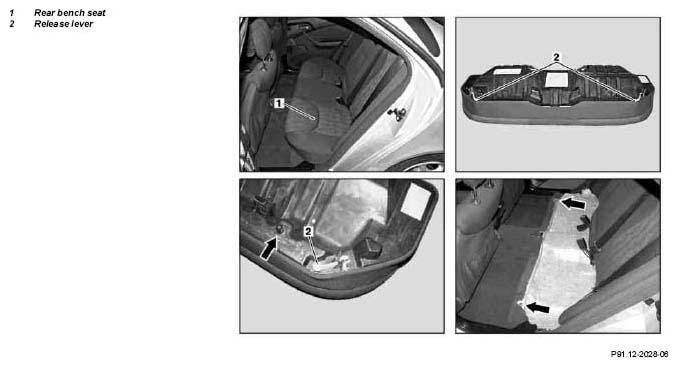

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Model 220.0 /1 (1 Of 2)

Fig 2: Identifying Rear Seat Cushion Remove/Install Components - Model 220.0 /1 (2 Of 2)

	Remove/Install
1	Pull release lever (2) upwards and lift up rear bench seat (1)n
2.1	Disconnect electrical connector for heated seats	With electric heated seats for left and right rear seat, code 872.
3	Remove rear bench seat (1)	An assistant is needed for the rear bench seat with integral child seat. Installation:  Expose lap belt and seat belt buckles. Pay attention to pilot stud (arrow) and insert the rear bench seat at the rear left and right in the crash bracket (3).
4	Install in the reverse order
