Check and adjust rear axle camber and caster - AR40.20-P-0335GH

MODEL 163

Camber

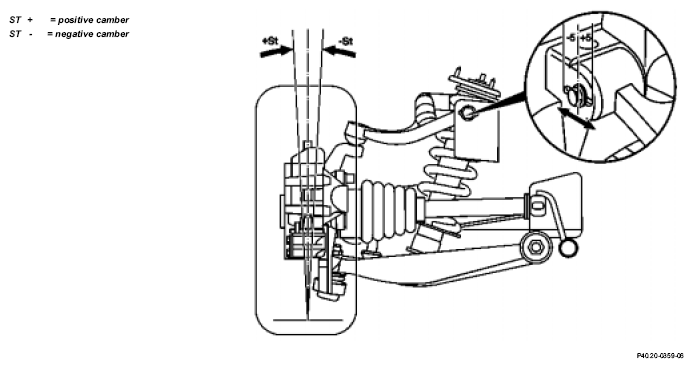

Fig 1: Checking And Adjusting Rear Axle Camber

Caster

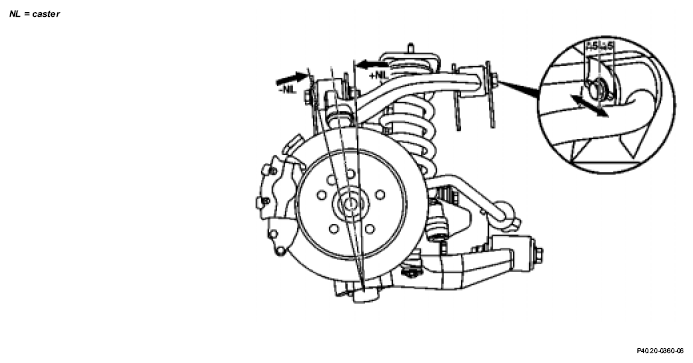

Fig 2: Checking And Adjusting Rear Axle Caster

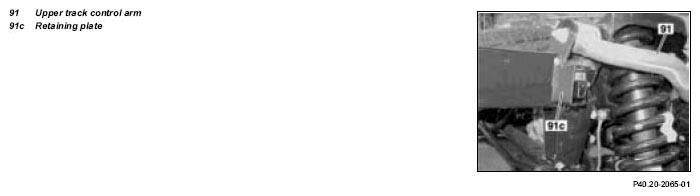

Fig 3: Identifying Upper Track Control Arm And Retaining Plate

Modification notes

21.2.01

Test values for rear axle camber changed

BE40.20-P-1001-09I

	Inspect
1	Observe general information on chassis alignment check.		AR40.20-P-0201A
2	Check vehicle level at front and rear axle with electronic inclination meter and adjust, if necessary		AR40.20-P-0301GH
3	Check camber, match with a value in the table		AR40.20-P-0335-01GH
		Camber at vehicle level	*BE40.20-P-1001-09I
		Permissible rear axle camber between right and left vehicle side	*BE40.20-P-1002-09I
4	Check caster at rear axle using electronic inclinometer	If a repaired supporting joint is installed in the wheel carrier, unscrew locking inner slotted nut with claw-type wrench. Installation: Once used, the locking inner slotted nut must be replaced.	AR40.20-P-0335-03GH
			*BA35.20-P-1005-07A
			Figure
			*WE58.40-Z-1002-15A
5	Check caster and assign to tabular value		AR40.20-P-0335-02GH
	Adjusting
6	Adjusting camber and caster	The rear axle camber is corrected at the front bolted connection of the top transverse control arm/ vehicle frame. On code 612 Xenon headlamps, detach retaining plate (91c) from vehicle frame and fold to one side with level sensor. The caster is set at the rear bolted connection of top transverse control arm/ vehicle frame.	AR40.20-P-0322-06GH
			*BA33.20-P-1006-01D
7	Adjust toe-in at rear axle.		AR40.20-P-0332GH

Test values for rear axle camber

Number	Designation			Model 163.113/128/ 136/154/157/ 172/175	Models 163.174
BE40.20-P-1001-09I	Camber at vehicle level	6,2°	∠ °	-0° 43'(±20')	-
		5,9°	∠ °	-0° 41'(±20')	-
		5.6°	∠ °	-0° 40'(±20')	-
		5,3°	∠ °	-0° 39'(±20')	-
		5,0°	∠ °-	-0° 38'(±20')	-
		4,7°	∠ °	-0° 36'(±20')	-
		4,4°	∠ °	-0° 35'(±20')-0°35'(±20')	- 0° 35' (±20')
		4,1°	∠ °	-0° 34'(±20')-0°34'(±20')	-0° 34' (±20')
		3,8°	∠ °	-0° 34'(±20')-0°34'(±20')	-0° 34' (±20')
		3,5°	∠ °	-0° 33'(±20')-0°33'(±20')	-0° 33' (±20')
		3,2°	∠ °	-0° 32'(±20')-0°32'(±20')	- 0° 32' (±20')
		2,9°	∠ °	-	- 0° 32'(±20')
		2,6°	∠ °	-	- 0° 31'(±20')
		2,3°	∠ °-	-	- 0° 31'(±20')
		2,0°	∠ °	-	- 0° 30'(±20')
		1,7°	∠ °	-	- 0° 30'(±20')
BE40.20-P-1002-09I	Permissible rear axle camber between right and left vehicle side		∠ °	20'	20'

Wheel location, hub

Number	Designation		Model Series 163
BA33.20-P-1006-01D	Bolt, upper wishbone to frame	Nm	120

Wheel location

Number	Designation		Model Series 163
BA35.20-P-1005-07A	Locking slotted round nut, supporting joint to wheel carrier (replacement part)	Nm	300

Workshop equipment

WE58.40-Z-1002-15A

Electronic clinometer

Fig 4: Identifying Prong Wrench (385 589 00 07 00)
