Remove/install front door side airbag unit - AR91.60-P-0690GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (292) Side airbag at front left and right

Shown: side airbag unit up to 08/99

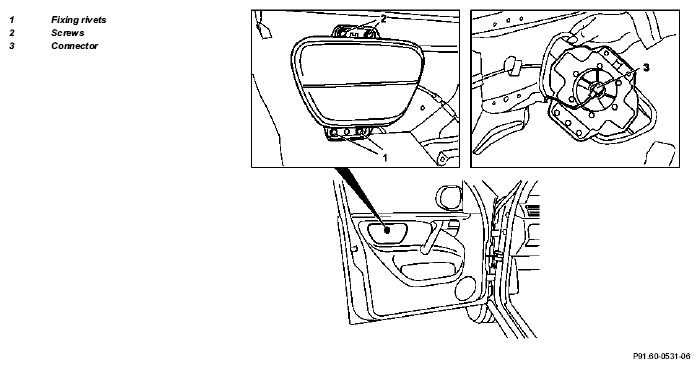

Fig 1: Identifying Front Door Side Airbag Unit Components

	Remove/install
	Risk of injury  when carrying out test or repair work on airbag or emergency tensioning retractor units	Store airbag unit with expulsion area on top, do not subject to temperatures above 100 °C. Interrupt power supply when working on such units.	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbags or belt tensioner units	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 414, 638, 690.6, 901, 902, 903, 904, 905 Model 461 with engine 602.983 Model 463 up to 30.11.00 MODELS WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0002-01B
	Evaluation of airbags and emergency tensioning retractors on accident vehicles	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 203, 208, 209, 210, 211.004/006/016/061/065/070, 215, 220, 230, 240, 414, 463, 638, 901, 902, 903, 904, 905 Models WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0006-01B
	Legal regulations concerning the handling and storage of airbag and emergency tensioning retractors	Models 124, 129, 140, 163, 168, 170, 202, 203, 208, 209, 210, 211.004/006/016/061/065/070, 215, 220, 230, 240, 314, 316, 318, 414, 461, 463, 638, 668, 670, 690.6, 901, 902, 903, 904, 905, 950, 952, 953, 954, 970, 972, 974, 975, 976 Models WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0004-01A
	Notes on disposal of airbags and emergency tensioning retractors	All models	OS91.00-P-0001-01A
	Render emergency tensioning retractors unusable		AR91.40-P-0611A
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove door lining from front door		AR72.10-P-1000GH
3	Drill out fastening rivets (1) of side airbag unit	As of 09/99, a side airbag unit of the new model series is installed in all models; it is secured to the inner door panel using 4 rivets,
4.1	Unscrew bolt (2)	up to 08/99.
			*BA91.60-P-1006-01A
5	Remove side airbag unit
6	Disconnect connector (3) from side airbag unit
7	Install in the reverse order
8	Carry out diagnosis	see Diagnosis Manual.
