Remove/install front door liner - AR72.10-P-1000GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

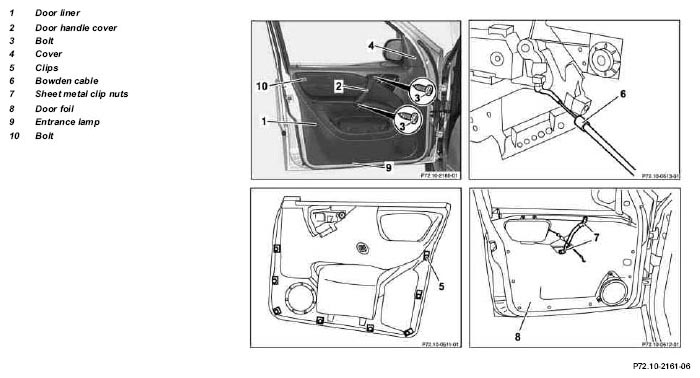

Fig 1: Identifying Front Door Liner Components

	Remove/install
1	Open crank window
2	Remove cover for door handle (2)	Press cover off using assembly wedge at bottom.
		Assembly wedge	Fig 2
3	Unscrew bolts (3)
4.1	Unclip SRS panel and unscrew screw (10)	As of vehicle identification number A145273, X708319.
5	Remove cover (4) with installation wedge	Assembly wedge	Fig 2
6	Press door liner (1) off of inner door panel at bottom, front and rear with assembly wedge	Position assembly wedge directly next to clips (5).
		Assembly wedge	Fig 2
7	Lift door liner (1) up and out
8	Unhook control cable (6) from inner door actuation
9.1	Remove entrance lamp (9)	As of vehicle identification number A145273, X708319.
10	Lay down door liner
11	Check sheet metal clip nuts (7) on inner door panel	Replace damaged sheet metal clip nuts.
12	Check door foil (8) on inner door panel and clips (5) on door	Replace damaged door foil Replace all clips.
13	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
