| 1 |
Remove 40% rear seat |
|
|
 |
Remove and install bench |
|
AR91.12-P-1010GI |
| 2 |
Remove folding backrest on 40% rear seat |
|
|
|
Remove/install tilting rear seat |
|
AR91.12-P-1720GI |
| 3 |
Pull off Velcro strips (1) on back of seat cover (2) |
|
|
| 4 |
Detach seat cover (2) from back of seat frame (3) |
|
|
| 5 |
Remove cover (4) on inside of release lever (5) |
|
|
| 6 |
Unscrew bolt (6) on support (9) |
|
|
| 7 |
Remove bolt or pin (7) at bottom of support (9) and remove support |
Up to VIN A152440 a bolt has been used for securing the support ↓ |
|
| |
|
Replace rear seat bearing. |
AN91.12-P-0002-01A |
 |
Install |
|
|
| 8 |
Install long gas-filled spring strut on the outside left side |
|
|
| 9 |
Attach release mechanism (11) with handle (10) to release lever
Insert the pin at the rear cleanly. Use the longer bolts for fastening. |
|
|
| 10 |
Insert clip retainers (12) on release cable into holes at top of seat frame |
Risk of breakage! |
|
| 11 |
Install telescopic arm (13) instead of support (9) |
The release clip (15) is seated in the larger recess in the telescopic arm housing and faces towards the rear. The longer section of the upper and lower telescopic arm mountings point towards the left side. |
|
| |
|
 |
*BA91.40-P-1006-01D |
| |
|
|
*BA91.12-P-1011-03A |
| 12 |

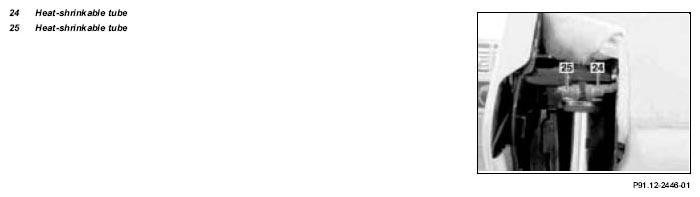

Push a 25 mm long piece of heat-shrinkable tube (24) over the end of the release cable |
|
|
| 13 |
Insert the ends of the release cables (14) in the release clip (15) |
|
|
| 14 |
Push the heat-shrinkable tube (24) on the inside over the release cable (14) and release clip (15) |
|
|
| 15 |
Push a second 25 mm long piece of heat-shrinkable tube (25) on the outside over the release cable (14) and release clip (15) |
|
|
| 16 |
Carefully heat up heat-shrinkable tube and shrink onto the release cable and release clip |
Do not damage seat cover due to exposure to heat. |
|
| |
|
Hot air gun |
*WH58.30-Z-1004-20A |
| 17 |
Install cover (16) |
|
|
| 18 |
Install rubber stop (17) on front of seat frame |
|
|
| 19 |
Attach seat cover (2) to rear of seat frame |
|
|
| 20 |
Fasten Velcro strips (1) on back of seat cover (2) |
|
|
| 21 |
Screw on cover (18) on underside of seat frame |
Copy the positions of the holes from the cover on the seat frame if there are no holes present. |
|
| 22 |
Install folding backrest on 40% rear seat |
|
|
|
Remove/install tilting rear seat |
|
AR91.12-P-1720GI |
| 23 |
Install 40% rear seat |
|
|
|
Remove and install bench |
|
AR91.12-P-1010GI |
| 24 |
Replace side curtain (23) on 40% bench seat |
Modified curtain is included in the parts kit. |
|
| 25 |

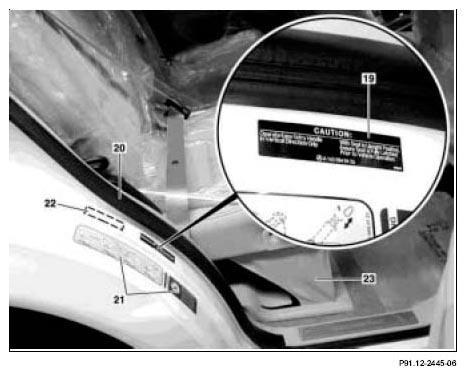

Affix sticker with instructions for use for easy entry in English (19) on C-pillar |
between rubber door seal for rear doors (20) and existing stickers (21). |
|
| 26.1 |
Affix sticker with instructions for use for easy entry in French (22) onto C-pillar |
Only additional parts code 460 on vehicles for Canada. Attach immediately behind the sticker in English. |
|
| 27 |
Perform function check |
|
|
