| 1 |
Remove headrests |
See Operating Instructions |
|
| 2 |
Remove rear cargo space floor flaps |
See Operating Instructions |
|
| 3 |
Fold other bench down into the footwell |
See Operating Instructions |
|
| 4.1 |

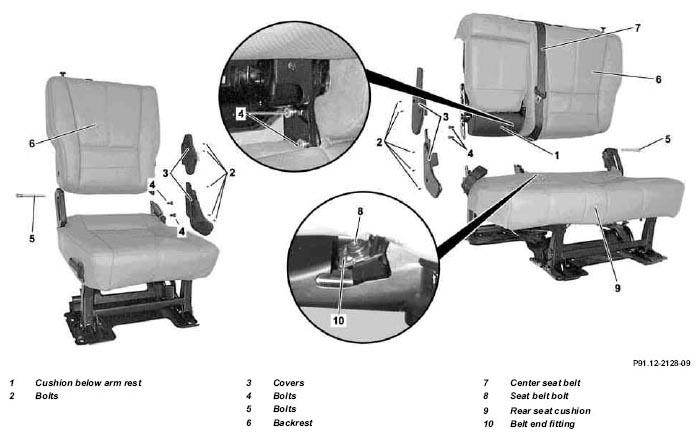

Remove cushion (1) from underneath arm rest |
Applies to 60% seat bench only. Unscrew 2 bolts on the bottom of the rear side, and turn upholstery upwards, in order to detach locating tab at the rear. |
|
| 5 |
Remove screws (2) for covering (3) |
|
|
| 6 |
Remove covers (3) from backrest fitting |
|
|
| 7 |
Remove screws (4) on backrest fitting |
60 % bench: Fold backrest down, in order to gain access to the screws on inside of the backrest fitting. |
|
| |
|
Torx bit set |
Figure |
| |
|
 |
*BA91.12-P-1006-03A |
| 8 |
Fold bench seat into footwell |
Rear seat backrest remains erect. |
|
| 9 |
Remove screw (5) on backrest bracket |
Pull handle forward. |
|
| |
|
Torx bit set |
Figure |
| |
|
|
*BA91.12-P-1006-03A |
| 10 |
Remove rear seat backrest (6) from bench |
Put rear seat backrest down in the load compartment. |
|
| 11.1 |
Detach seat upholstery from back of rear seat cushion (9) |
Applies to 60% seat bench only. |
|
| 12.1 |
Carefully lift seat upholstery upwards and remove seat belt screw (8) on belt end fitting (10) on the rear seat bench frame |
Take care not to damage seat upholstery. |
|
| |
Applies to 60% seat bench only. |
|
|
| |
|
Torx bit set |
Figure |
| |
|
|
*BA91.40-P-1001-01D |
| 13.1 |
Remove buckle connector from seat frame and withdraw from retaining clamp |
Only 60 % bench seat in combination with rear side airbag (left and right), code 293. In order to avoid fault codes, turn ignition key to the "0" position. |
|
| 14.1 |
Remove belt end fitting (10) together with buckle through the rear seat cushion (9) |
Do not damage seat cover!
Applies to 60% seat bench only. |
|
| 15 |
Install in the reverse order |
|
|
