Remove, install poly V-belt - AR13.22-P-1202BA

ENGINE 112 in MODEL 202, 208.365 /465, 210, 220.063 /065 /067 /087 /163 /165 /167 /187

ENGINE 113 in MODEL 215.373 /375, 220.070 /073 /075 /083 /084 /170 /173 /175 /183 /184 /875

ENGINE 113.981 in MODEL 163.174

ENGINE 113.965 in MODEL 163.175

ENGINE 113.984 in MODEL 208.374 /474

Shown on engine 112

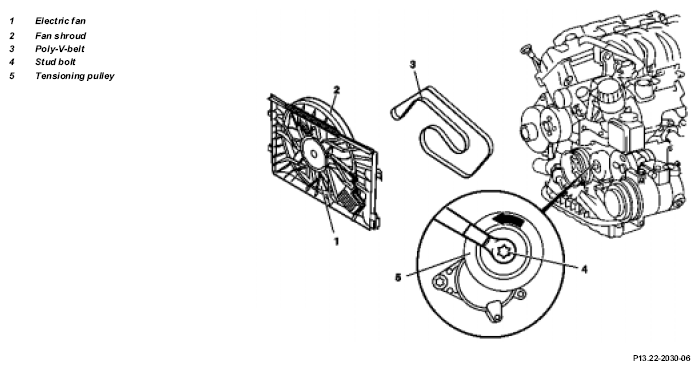

Fig 1: Identifying Poly V-Belt Remove/Install Components - Shown On Engine 112

	Remove
1.1	Remove fan shroud (2) with electric fan (1)	For models 163.174/175 only.	AR20.40-P-5000GH
2	Loosen and remove the poly-V-belt (3)	For this step, swivel stud bolt (4) at tensioning pulley (5) in anti-clockwise direction Lock the tension pulley with a pin or mandrel (diameter 5mm).
		External torx set	Figure
	Check
3	Inspect belt pulley sections and tensioning device for damage and dirt
4	Check poly-V-belt (3)
	Check poly-V-belt in visible area for wear	Engine 112, 113 except 113.965/981	AP13.22-P-1352Z
		Engine 113.981/965 in model 163	AP13.22-P-1351GH
	Install
5	Fit on poly-V-belt (3), then clamp	Do not use belt wax or any similar products. Proceed by the numbered sequence of the respective belt routing pattern, starting with the tension pulley: ↓
		Routing diagram of poly V-belt	AR13.22-P-3902-02B
6.1	Install fan shroud (2) with electric fan	For models 163.174/175 only.	AR20.40-P-5000GH

Fig 2: Identifying External Torx Set (001 589 76 09 00)
