Running diagram of poly V-belt - AR13.22-P-3902-02B

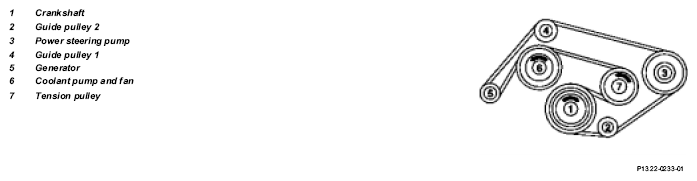

6-groove single-belt drive, without AC compressor

Fig 1: Running Diagram Of Poly V-Belt (6-Groove Single-Belt Drive, Without AC Compressor)
G04606180

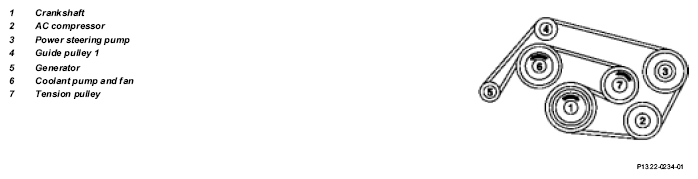

6-groove single-belt drive, with AC compressor

Fig 2: Running Diagram Of Poly V-Belt (6-Groove Single-Belt Drive, With AC Compressor)
G04606181
