Removing and installing wiper motor - AR82.30-P-6800GH

MODEL 163

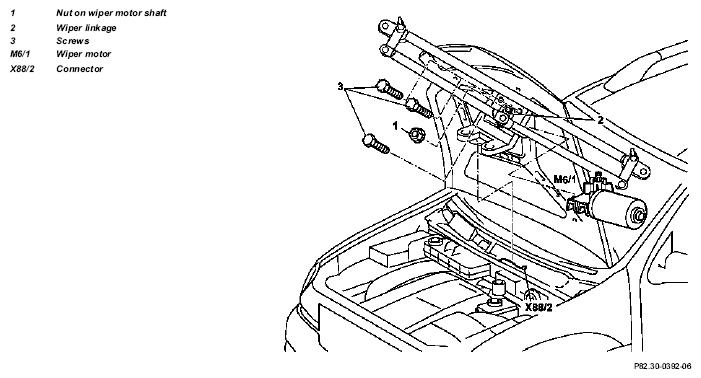

Fig 1: Identifying Wiper Motor Components

	Removal, installation
	Injury hazard  from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key before working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Remove cover on air intake		AR83.25-P-1405GH
2	Remove wiper system		AR82.30-P-6400GH
3	Unscrew nut on wiper motor shaft (1)	Installation:  Align lever on wiper motor shaft vertically downward.
4	Unscrew screws (3) on wiper linkage (2) to wiper motor (M6/1)
5	Disconnect connector (X88/2)	Installation:  Move wiper motor to park position	AR82.30-P-6800-01E
6	Remove wiper motor (M6/1)
7	Reinstall in opposite order
