Remove/install cover at air intake - AR83.25-P-1405GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

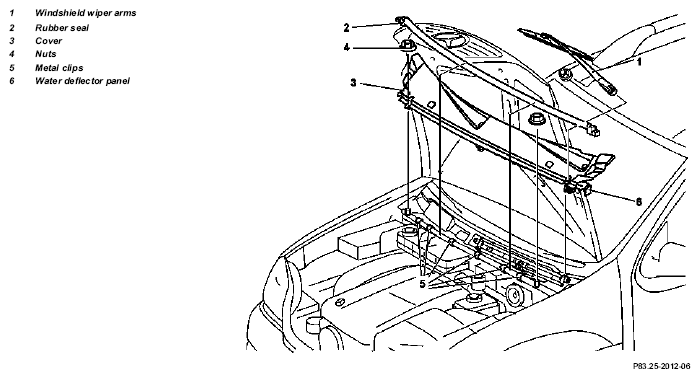

Fig 1: Identifying Components For Cover At Air Intake - Model 163.113 /128 /136 /154 /157 /172 /174 /175

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Injury hazard  by trapping or crushing, in extreme cases with loss of limbs when reaching into windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Remove wiper arms (1)		AR82.30-P-6100GH
2	Detach rubber seal (2) from firewall
3	Remove metal clips (5)
4	Unscrew nuts (4) at firewall	Remove foam insert.
5	Seal off washer fluid hose at check valve
6	Remove cover (3) together with water deflector panel (6)	If damaged, detach water deflector panel (6) from cover (3). Installation:  Lubricate upper edge of cover and windshield at bottom with soapy water.
7	Install in the reverse order
