Remove/install rain sensor - AR82.30-P-7700GH

MODELS 163.113 /128 /154 /157 /172 /174 /175 with CODE (345a) Rain sensor

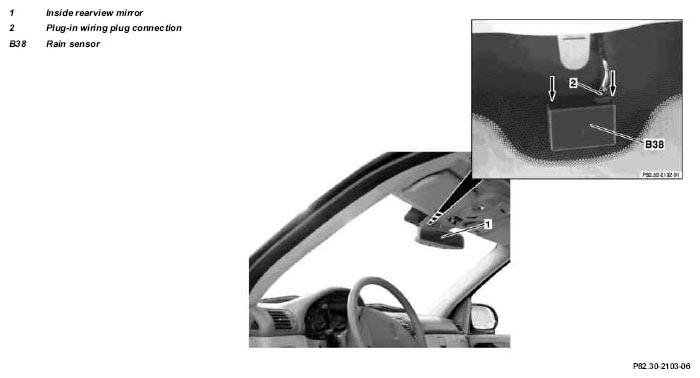

Fig 1: Identifying Rain Sensor Components

Modification notes

11.4.03

Disconnecting ground lead from battery newly included

Step 1

	Remove/Install
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove rearview mirror (1).	Models 163.154/172#A up to 145272, Models 163.154/172#X up to 708318	AR68.40-P-0001GH
		Models 163.154/172#A as of 145273, Models 163.154/172#X as of 708319, Models 163.113/128/157/174/175	AR68.40-P-0001GI
3	Disconnect electrical connector (2) from rain sensor(B38)
4	Press retaining lugs (arrows) downward
5	Remove rain sensor (B38)	Lens of rain sensor (B38) is bonded to the windshield and may not be removed, otherwise this damages the lens.
6	Install in the reverse order
