Remove/install inside rearview mirror - AR68.40-P-0001GI

MODEL 163.136 /154 /172 #A as of 145273, 163.136 /154 /172 #X as of 708319, 163.113 /128 /157 /174 /175

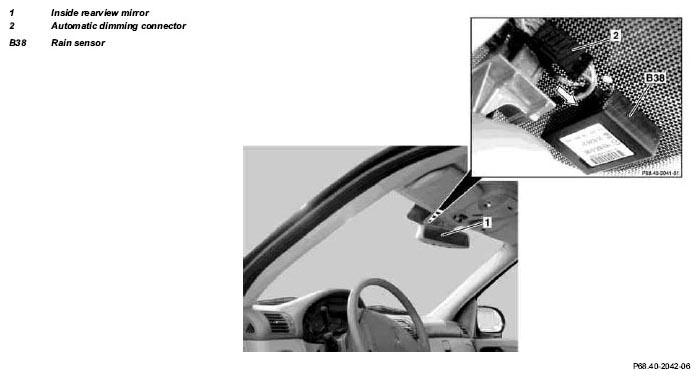

Fig 1: Identifying Inside Rearview Mirror, Automatic Dimming Connector & Rain Sensor
G04608283
REMOVINGINSTALLING Remove/install
1 Turn inside rearview mirror (1) 90 and press against mirror housing at side. NOTES Danger of breaking windshield. Do not damage rain sensor (B38), if present.
2.1 Disconnect automatic dimming connector (2). IMPORTANT Only with automatically dimming inside rearview mirror, code 249a.
3 Install in the reverse order
