Retrofitting portable CTEL - AZ82.70-P-0006GH
MODEL 163 as of 1.9.00 up to 30.9.01
Nokia 51 xx and 61 xx portable cellular telephone

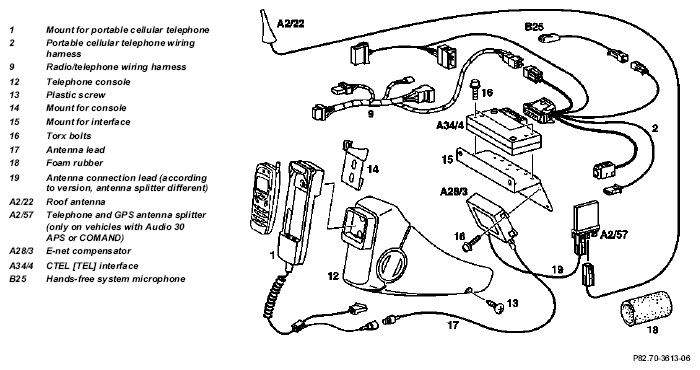

System illustration for installing telephone and GPS
| Removal | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio or COMAND | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove cover from radio | ||
| 5 | Remove air conditioning pushbutton control module | ||
| 6 | Remove overhead control panel | ||
| 7 | Tie antenna lead | ||
| Install | |||
| 8 | Covering fiber optic cable | ||
| AR82.95-P-0005-01A | |||
| 9 | Retrofit fiber optic cable wiring harness | Vehicles without CD player with changer (code 819). | AN82.70-P-0002-01GH |
| Vehicles with CD player with changer (code 819). | AN82.70-P-0002-01GHH | ||
| 10 | Retrofit telephone cable harness | AZ82.70-P-0001-04GH | |
| 11 | Installing hands-free system microphone | Vehicles up to 31.12.00. | AZ82.70-P-0001-02E |
| Vehicles as of 1.1.01. | AZ82.70-P-0001-02GH | ||
| 12 | Retrofitting telephone console | AZ82.70-P-0001-01GH | |
| 13 | Install antenna on roof | Install antenna without modifying. |
|
| 14 | Retrofit antenna lead | AZ82.70-P-0002-01A | |
| 15 | Check portable cellular telephone for proper function | ||
| 16 | Reassemble vehicle 6-1 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 682 94 19 | Telephone (portable cellular telephone), Nokia 6150 | 1 |
| MA203 820 04 51 | Mount (portable cellular telephone) | 1 |
| A203 820 32 26 | Control module (portable cellular telephone) | 1 |
| A203 820 39 26 | Compensator | 1 |
| B6 682 86 00 | Mount (compensator) | 1 |
| N000 000 000 521 | Screw (St 4.2x13) | 4 |
| B6 682 86 01 | Wiring harness (portable cellular telephone) | 1 |
| B6 682 86 02 | Wiring harness (LWL1 without CD player) | 1 |
| B6 682 86 03 | Wiring harness (LWL2 with CD changer) | 1 |
| B6 682 86 04 | Lead (for antenna, on vehicles without Audio APS or COMAND) | 1 |
| B6 682 86 05 | Lead (for antenna, on vehicles with Audio APS or COMAND) | 1 |
| B6 682 86 06 | Lead (for antenna) | 1 |
| B6 788 03 57 | Portable cellular telephone console anthracite LHS | 1 |
| B6 788 03 55 | Portable cellular telephone console anthracite RHS | 1 |
| B6 788 03 54 | Portable cellular telephone console orion gray middle LHS | 1 |
| B6 788 03 58 | Portable cellular telephone console orion gray middle RHS | 1 |
| B6 788 03 59 | Portable cellular telephone console java LHS | 1 |
| B6 788 03 56 | Portable cellular telephone console java RHS | 1 |
| B6 682 86 07 | Wiring harness (telephone on radio) | 1 |
| B6 682 86 08 | CTEL antenna | 1 |
| B6 682 86 09 | Cover (with microphone), color: java (as of 01/01) | 1 |
| B6 682 86 10 | Cover (without microphone) color: light gray (as of 01/01) | 1 |
| B6 682 86 11 | Active microphone in design function housing (up to 12/00) | 1 |
