Retrofit fiber optic cable wiring harness - AN82.70-P-0002-01GHH

Prepare fiber optic cable wiring harness (31) as shown in figure.
Connect fiber optic cable wiring harness (31) to the CTEL interface (A34/4).

Fig 1: Identifying Fiber Optic Cable Wiring Harness Connection

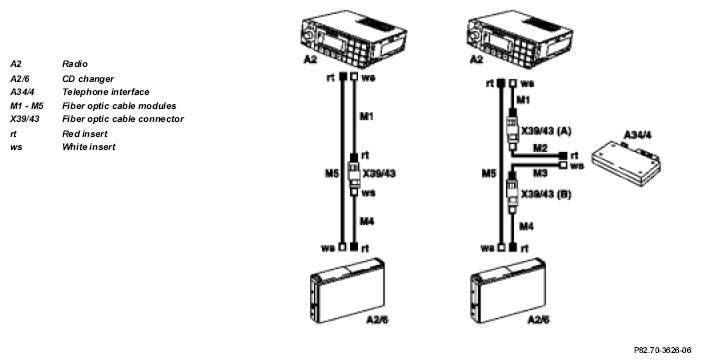

The D2B fiber optic cable ring is enlarged with two new fiber optic cable modules M2 and M3. Module M5 remains unchanged in the vehicle.

Shown on vehicle with radio

Fig 2: Identifying Radio, CD Changer And CTEL Interface
After installing the interface in the radio slot, expose fiber optic cable connector (X39/43) (A), offnen and take out the white insert (ws).

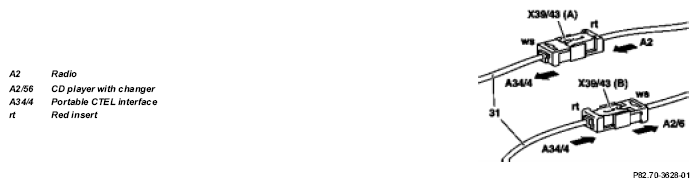

Fig 3: Identifying White Insert And Fiber Optic Cable Connector
Place the white insert (ws) of the fiber optic cable wiring harness (31) into the fiber optic cable connector (X39/43) (A) and close again.
Open the fiber optic cable connector (X39/43) (B) of the fiber optic cable wiring harness (31), place in the white insert (ws) of the standard wiring harness and close again.
Shown on vehicle with radio A2 Radio

Fig 4: Identifying Fiber Optic Cable Connector (X39/43) (B) And Fiber Optic Cable Wiring Harness
