Retrofitting Traffic Pro navigation system - AZ82.61-P-0002H
MODEL 163 up to 30.6.00
except CODE (810) Sound system
except CODE (819) 6-disk CD changer
except CODE (316) MB GSM cellular telephone (D2B)
except CODE (317) GSM portable cellular telephone (D2B)

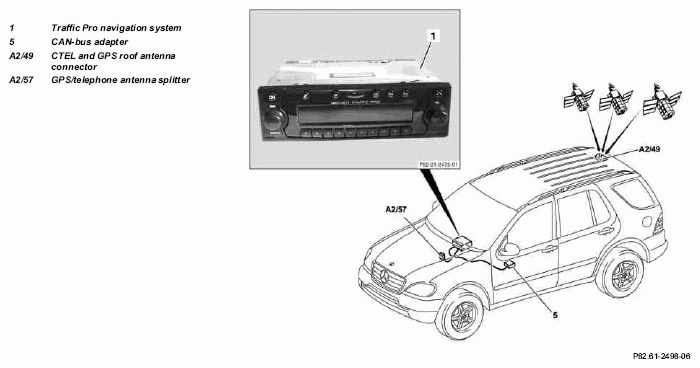

System illustration with telephone and GPS roof antenna
| See notes on radio connector pin assignment | Models 163. | AH82.61-P-0001-05A | |
| Notes on Traffic Pro navigation system | Models 129, 140, 163, 168, 170, 202, 208, 210. | AH82.61-P-0002-01A | |
| Removal | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| AR82.60-P-7502EA | |||
| 3 | Remove center console | ||
| AR68.20-P-2000GH | |||
| Install | |||
| 4 | Retrofit global positioning system (GPS) antenna on roof | AN82.61-P-7474-04AZ | |
| 5 | Retrofit Traffic Pro wiring harness | Vehicles with automatic transmission. | AZ82.61-P-0002-01H |
| Vehicles with manual transmission. | AZ82.61-P-0002-01HH | ||
| 6 | Fit remaining parts to vehicle 3-1 | ||
| 7 | Enable radio code | ||
| 8 | Start up Auto-Pilot-System |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 30 24 | Traffic Pro navigation system parts kit | 1 |
| Group 82 (see EPC) | CTEL and GPS antenna | 1 |
| Group 82 (see EPC) | Antenna lead from splitter to radio | 1 |
| Group 82 (see EPC) | Adapter wiring harness (without sound system) (vehicles with engine 111 or up to 9.99) | 1 |
| Group 82 (see EPC) | CAN bus wiring harness (vehicles with engine 111 or up to 9.99) | 1 |
| Group 82 (see EPC) | CAN bus adapter (vehicles with engine 111 or up to 9.99) | 1 |
| A011 545 80 26 | Contact spring (radio) | 2 |
| Commercially available | Green lead 0.5 mm2 | 2m |
| Group 82 (see EPC) | Antenna splitter | 1 |
