Retrofit antenna for global positioning system (GPS) - AN82.61-P-7474-04AZ

Model 163 up to 31.8.00

1. Install the combination antenna on roof as specified in the enclosed installation instructions of the manufacturer Kathrein.

   Radiator does not need to be shortened for GSM telephones.

2. Expose the antenna lead (40) already installed in the vehicle, in the radio slot and connect to antenna diplexer (A2/57) at the middle connection.
3. Connect GPS antenna lead (41) to GPS output.

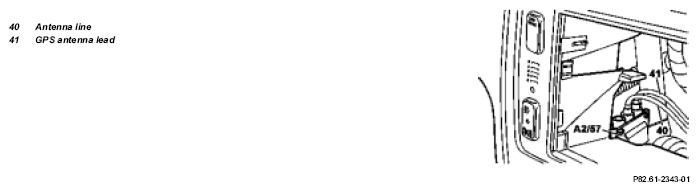

   Fig 1: Identifying Antenna Diplexer And Antenna Lead


4. Fit on antenna diplexer (A) in left of radio slot at longitudinal strut, as shown in figure.
   Fig 2: Identifying Antenna Diplexer, Antenna Line And GPS Antenna Lead
