| 1 |
Remove door liner on front door |
|
AR72.10-P-1000GH |
| 2 |
Remove outer door handle on front door |
|
AR72.10-P-2400GH |
| 3 |
Remove bearing bracket for door handle |
|
|
| 4 |
Pull door foil off of inner door panel |
 Installation:
Replace damaged foil |
|
| 5 |

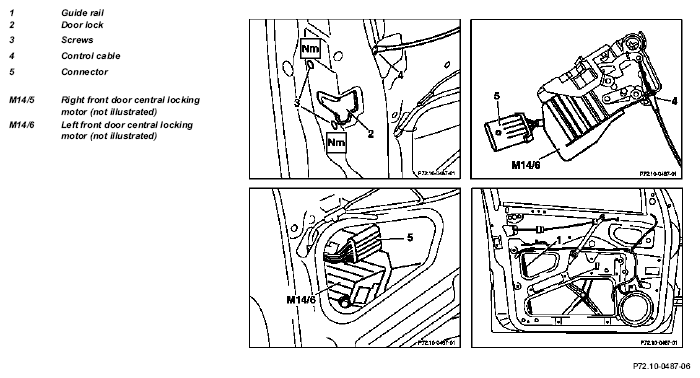

Remove window lift mechanism guide rail (1) |
|
|
| 6 |
Unscrew screws (3) |
 |
*BA72.10-P-1004-01D |
| 7 |
Disconnect connector (5) on central locking motor (M14/5 or M14/6) |
|
|
| 8 |
Remove door lock (2) |
Remove door lock (2) downward through installation opening |
|
| 9 |
Unhook control cable (4) |
|
|
| 10 |
Install in opposite order |
|
|
