| 1 |

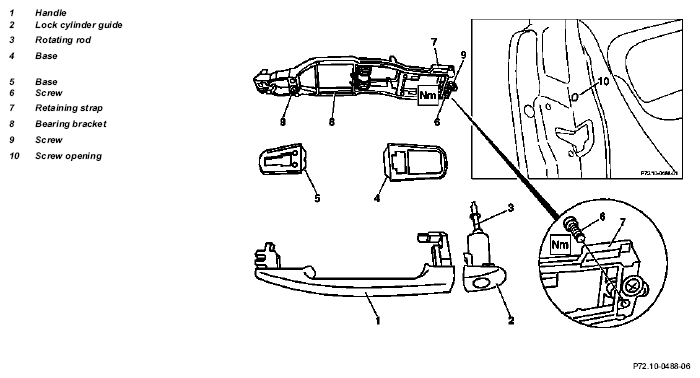

Loosen screw (6) |
Accessible through opening (10) on inner side of door, loosen screw (6) max. 5 turns |
|
| |
|
 |
*BA72.10-P-1003-01D |
| 2 |
Pull off cylinder guide (2) outward to remove |
Installation:
Insert rotary rod (3) into door lock actuating mechanism |
|
| 3 |
Pull handle (1) toward rear together with base (4) out of bearing bracket (8) |
|
|
| 4 |
Remove base (5) |
Installation:
Insert base (5) into bearing bracket(8) |
|
| 5.1 |
Remove bearing bracket (8) |
Only if bearing bracket is defective. The bearing bracket (8) can only be removed through the installation opening in the inner door panel. For this purpose ↓ Remove door liner on front door |
AR72.10-P-1000GH |
| 6 |
Install in opposite order |
|
|
| 7 |
Adjust clearance between handle (1) and actuating lever on door lock with eccentric adjustment screw |
Eccentric adjustment screw: Accessible through opening on end of door. Use Phillips screwdriver |
|
| 8 |
Check for proper function |
|
|
