Remove/install stowage compartment or beverage holder - AR68.10-P-1600GI
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 passenger side
Instrument panel is illustrated disassembled for clarity.
Vehicles up to VIN A145272, X708318

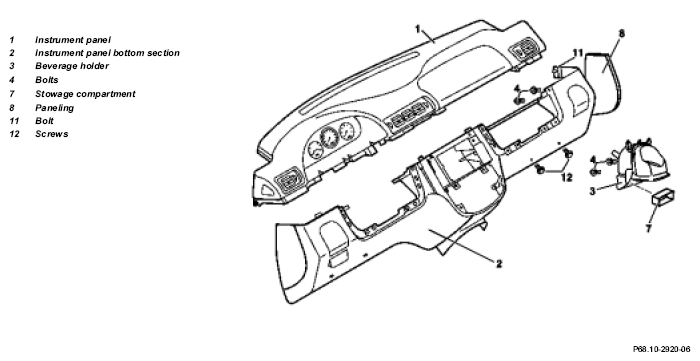

Fig 1: Identifying Stowage Compartment Components (Passenger Side Vehicles Up To VIN A145272, X708318)
Instrument panel is illustrated disassembled for clarity.
Vehicles as of VIN A145273, X708319

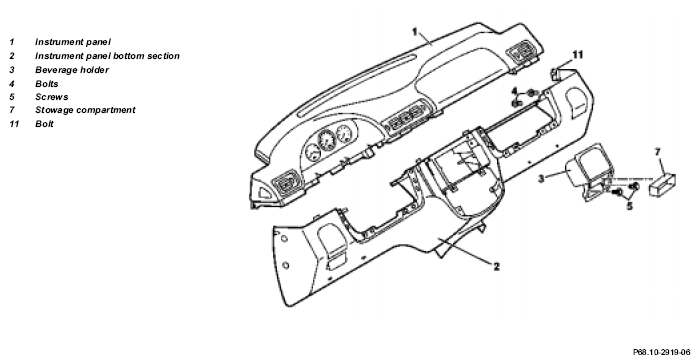

Fig 2: Identifying Stowage Compartment Components (Passenger Side Vehicles As Of VIN A145273, X708319)
| 1.1 | Remove cover below instrument panel on passenger side | AR68.10-P-1520GI | |
| 2 | Remove glove compartment | AR68.10-P-1400GH | |
| AR68.10-P-1400GI | |||
| 3.1 | Unscrew screws (12) from bottom side of instrument panel | ||
| 4 | Remove stowage compartment (7). | ||
| 5.1 | Remove entry lamp from bottom side of instrument panel. | ||
| 6.1 | Remove paneling (8). | ||
| 7 | Unscrew screw (11) from right side of instrument panel. | ||
| 8 | Loosen instrument panel bottom section (2) at side on instrument panel (1) and pull downward. | ||
| 9 | Unscrew screws (4) from beverage holder (3) at inside of instrument panel bottom section (2) | ||
| 10.1 | Unscrew screws (5) at outside of instrument panel bottom section (2) | ||
| 11 | Remove beverage holder (3) | ||
| 12 | Install in the reverse order |
