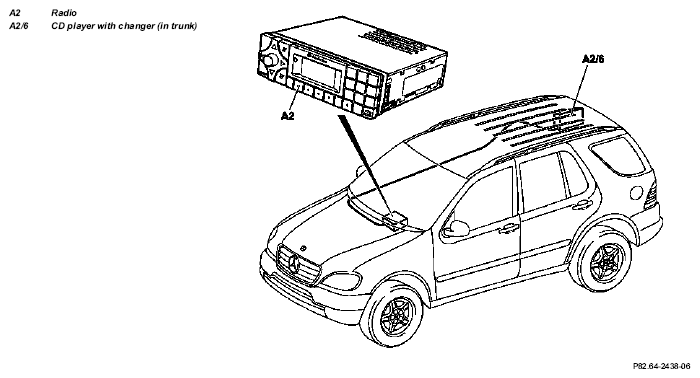

Retrofitting CD changer - AZ82.64-P-0001MA
MODEL 163 as of 1.7.99
in combination with Audio 10, Audio 30 radio or COMAND operating and display system and D2B fiber optical cable
| Remove | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| Disconnect ground lead from battery | AR54.10-P-0003A | ||
| 2 | Remove radio | ||
| Remove/install radio | AR82.60-P-7502EA | ||
| 3 | Remove right side paneling in footwell | ||
| Remove/install paneling in footwell | AR68.30-P-4010GH | ||
| 4 | Remove right-hand side entrance strip | ||
| Remove/install door sill molding | AR68.30-P-4100GH | ||
| 5 | Unscrew the bolt for the outer rear seat belt on the right side | *BA91.40-P-1001-01D | |
| 6 | Remove the front load compartment hooks on the right C-pillar | ||
| 7 | Remove load compartment cover and unscrew the bolt in the bracket | ||
| 8 | Remove cover for the CD changer and unscrew bolt behind the cover in the top left corner | ||
| Install | |||
| 9 | Retrofitting D2B wiring harness for CD changer | AZ82.64-P-0001-01MA | |
| Cover fiber optic cable | AR82.95-P-0005-01A | ||
| 10 | Retrofit CD changer in trunk | AZ82.64-P-0001-05MA | |
| 11 | Complete vehicle (following steps 8 to 1) | ||
| 12 | Carry out start-up and function test |
| Number | Designation | Model 210 up to 08/99 | Model 163 as of 09/99 | |
|---|---|---|---|---|
| BA91.40-P-1001-01D | Belt end fitting screw | NM | 35 | 35 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| KG82 Group 82 (see EPC) | CD changer | 1 |
| KG82 Group 82 (see EPC) | Wiring harness, fiber optic cable | 1 |
| KG82 Group 82 (see EPC) | Holder for CD changer | 1 |
| KG54 (see EPC) | Contact spring | 1 |
| KG82 Group 82 (see EPC) | Coupling, 10-pin | 1 |
| KG82 Group 82 (see EPC) | Plug (radio) | 1 |
| KG82 Group 82 (see EPC) | Plug (CD changer) | 1 |
| KG82 Group 82 (see EPC) | Protective cap | 2 |
| KG82 Group 82 (see EPC) | Clip fastener for screw plug | 1 |
| KG82 Group 82 (see EPC) | Clip fastener for bracket | 2 |
